Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: RFQReference
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:OrderReferenceType
Containing Schema: Components.xsd
Abstract
Documentation:
Is a reference to a RFQ

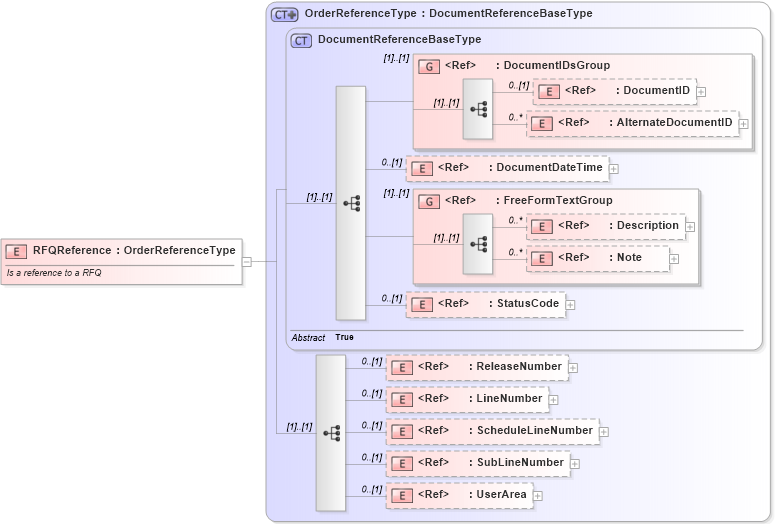

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into SubLineNumber in schema fields_xsd Drilldown into ScheduleLineNumber in schema fields_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into ReleaseNumber in schema fields_xsd Drilldown into StatusCode in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into DocumentReferenceBaseType in schema components_xsd Drilldown into OrderReferenceType in schema components_xsdXSD Diagram of RFQReference in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="RFQReference" type="OrderReferenceType">
    <xsd:annotation>
        <xsd:documentation>Is a reference to a RFQ</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
StatusCode nsA:StatusCode 0 (1)
ReleaseNumber nsA:ReleaseNumber 0 (1)
LineNumber nsA:LineNumber 0 (1)
ScheduleLineNumber nsA:ScheduleLineNumber 0 (1)
SubLineNumber nsA:SubLineNumber 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
