Definition Type: ComplexType
Name: RoutingHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:HeaderType
Containing Schema: Routing.xsd
Abstract
Collapse XSD Schema Diagram:

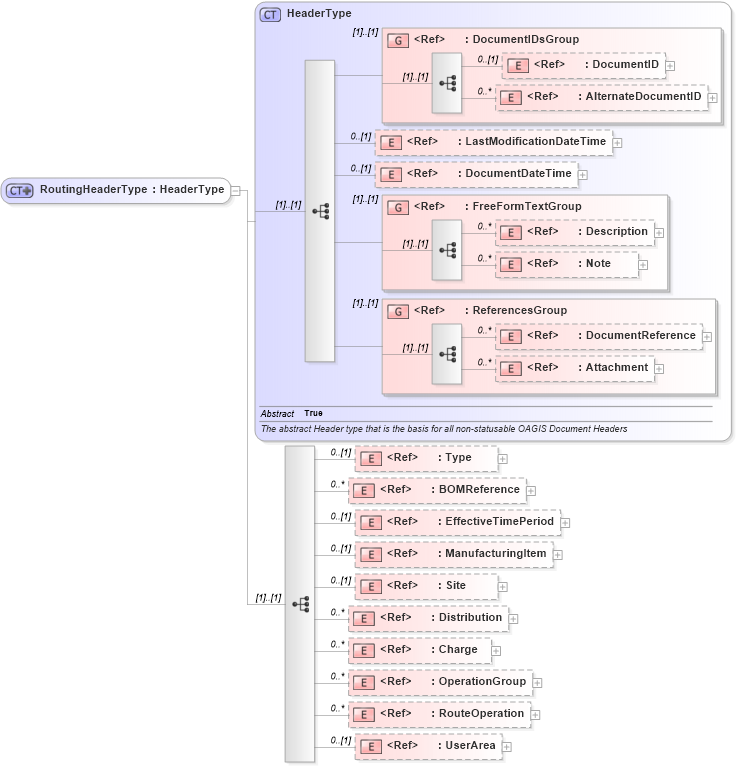

Drilldown into UserArea in schema fields_xsd Drilldown into RouteOperation in schema routing_xsd Drilldown into OperationGroup in schema routing_xsd Drilldown into Charge in schema components_xsd Drilldown into Distribution in schema components_xsd Drilldown into Site in schema components_xsd Drilldown into ManufacturingItem in schema manufacturingcomponents_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into BOMReference in schema components_xsd Drilldown into Type in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsdXSD Diagram of RoutingHeaderType in schema routing_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="RoutingHeaderType">
    <xsd:complexContent>
        <xsd:extension base="HeaderType">
            <xsd:sequence>
                <xsd:element ref="Type" minOccurs="0" />
                <xsd:element ref="BOMReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="EffectiveTimePeriod" minOccurs="0" />
                <xsd:element ref="ManufacturingItem" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the Item Identifier in which the Routing is being used to create.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Site" minOccurs="0" />
                <xsd:element ref="Distribution" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Charge" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="OperationGroup" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="RouteOperation" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Type nsA:Type 0 (1)
BOMReference nsA:BOMReference 0 unbounded
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
ManufacturingItem nsA:ManufacturingItem 0 (1)
Site nsA:Site 0 (1)
Distribution nsA:Distribution 0 unbounded
Charge nsA:Charge 0 unbounded
OperationGroup nsA:OperationGroup 0 unbounded
RouteOperation nsA:RouteOperation 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
