Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: SalesLeadReference
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SemanticDocumentReferenceType
Containing Schema: Components.xsd
Abstract
Documentation:
Reference to an existing SalesLead that is associated with the given document.

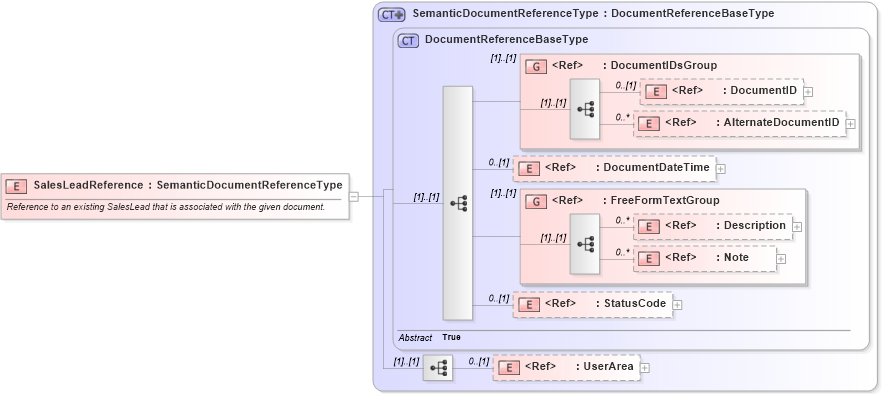

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into StatusCode in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into DocumentReferenceBaseType in schema components_xsd Drilldown into SemanticDocumentReferenceType in schema components_xsdXSD Diagram of SalesLeadReference in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="SalesLeadReference" type="SemanticDocumentReferenceType">
    <xsd:annotation>
        <xsd:documentation>Reference to an existing SalesLead that is associated with the given document.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
StatusCode nsA:StatusCode 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
