Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: SalesOrderLineType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:OrderLineType
Containing Schema: SalesOrder.xsd
Abstract
Documentation:
Is the SalesOrder Line type that provides the structure of the SalesOrder Line.

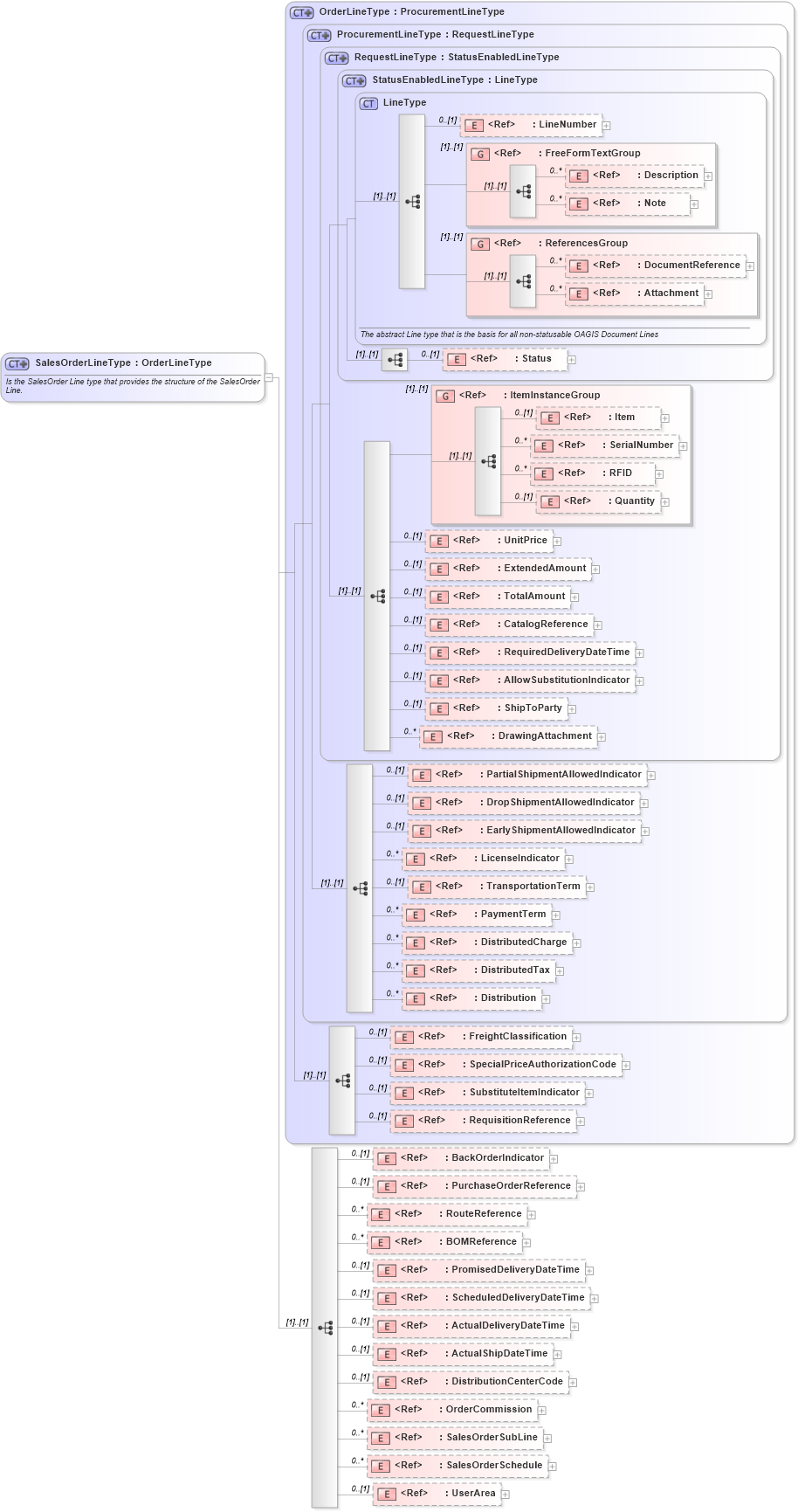

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into SalesOrderSchedule in schema salesorder_xsd Drilldown into SalesOrderSubLine in schema salesorder_xsd Drilldown into OrderCommission in schema ordermanagementcomponents_xsd Drilldown into DistributionCenterCode in schema fields_xsd Drilldown into ActualShipDateTime in schema fields_xsd Drilldown into ActualDeliveryDateTime in schema fields_xsd Drilldown into ScheduledDeliveryDateTime in schema fields_xsd Drilldown into PromisedDeliveryDateTime in schema fields_xsd Drilldown into BOMReference in schema components_xsd Drilldown into RouteReference in schema components_xsd Drilldown into PurchaseOrderReference in schema components_xsd Drilldown into BackOrderIndicator in schema fields_xsd Drilldown into RequisitionReference in schema components_xsd Drilldown into SubstituteItemIndicator in schema fields_xsd Drilldown into SpecialPriceAuthorizationCode in schema fields_xsd Drilldown into FreightClassification in schema components_xsd Drilldown into Distribution in schema components_xsd Drilldown into DistributedTax in schema components_xsd Drilldown into DistributedCharge in schema components_xsd Drilldown into PaymentTerm in schema components_xsd Drilldown into TransportationTerm in schema components_xsd Drilldown into LicenseIndicator in schema fields_xsd Drilldown into EarlyShipmentAllowedIndicator in schema fields_xsd Drilldown into DropShipmentAllowedIndicator in schema fields_xsd Drilldown into PartialShipmentAllowedIndicator in schema fields_xsd Drilldown into DrawingAttachment in schema components_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into AllowSubstitutionIndicator in schema fields_xsd Drilldown into RequiredDeliveryDateTime in schema fields_xsd Drilldown into CatalogReference in schema components_xsd Drilldown into TotalAmount in schema fields_xsd Drilldown into ExtendedAmount in schema fields_xsd Drilldown into UnitPrice in schema components_xsd Drilldown into Quantity in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into SerialNumber in schema fields_xsd Drilldown into Item in schema components_xsd Drilldown into ItemInstanceGroup in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into StatusEnabledLineType in schema components_xsd Drilldown into RequestLineType in schema ordermanagementcomponents_xsd Drilldown into ProcurementLineType in schema ordermanagementcomponents_xsd Drilldown into OrderLineType in schema ordermanagementcomponents_xsdXSD Diagram of SalesOrderLineType in schema salesorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="SalesOrderLineType">
    <xsd:annotation>
        <xsd:documentation>Is the SalesOrder Line type that provides the structure of the SalesOrder Line.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="OrderLineType">
            <xsd:sequence>
                <xsd:element ref="BackOrderIndicator" minOccurs="0" />
                <xsd:element ref="PurchaseOrderReference" minOccurs="0" />
                <xsd:element ref="RouteReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="BOMReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="PromisedDeliveryDateTime" minOccurs="0" />
                <xsd:element ref="ScheduledDeliveryDateTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis">The scheduled delivery date provided by the supplier.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ActualDeliveryDateTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis">Is the actual delivery date and time of the line item.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ActualShipDateTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis">Inidicates the shipping date and time of the line item.</xsd:documentation>
                        <xsd:documentation source="http://www.openapplications.org/oagis">Inidicates the shipping date and time of the line item.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="DistributionCenterCode" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis">Indicates the distribution center the line item will be shipped from.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="OrderCommission" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SalesOrderSubLine" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SalesOrderSchedule" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
Item nsA:Item 0 (1)
SerialNumber nsA:SerialNumber 0 unbounded
RFID nsA:RFID 0 unbounded
Quantity nsA:Quantity 0 (1)
UnitPrice nsA:UnitPrice 0 (1)
ExtendedAmount nsA:ExtendedAmount 0 (1)
TotalAmount nsA:TotalAmount 0 (1)
CatalogReference nsA:CatalogReference 0 (1)
RequiredDeliveryDateTime nsA:RequiredDeliveryDateTime 0 (1)
AllowSubstitutionIndicator nsA:AllowSubstitutionIndicator 0 (1)
ShipToParty nsA:ShipToParty 0 (1)
DrawingAttachment nsA:DrawingAttachment 0 unbounded
PartialShipmentAllowedIndicator nsA:PartialShipmentAllowedIndicator 0 (1)
DropShipmentAllowedIndicator nsA:DropShipmentAllowedIndicator 0 (1)
EarlyShipmentAllowedIndicator nsA:EarlyShipmentAllowedIndicator 0 (1)
LicenseIndicator nsA:LicenseIndicator 0 unbounded
TransportationTerm nsA:TransportationTerm 0 (1)
PaymentTerm nsA:PaymentTerm 0 unbounded
DistributedCharge nsA:DistributedCharge 0 unbounded
DistributedTax nsA:DistributedTax 0 unbounded
Distribution nsA:Distribution 0 unbounded
FreightClassification nsA:FreightClassification 0 (1)
SpecialPriceAuthorizationCode nsA:SpecialPriceAuthorizationCode 0 (1)
SubstituteItemIndicator nsA:SubstituteItemIndicator 0 (1)
RequisitionReference nsA:RequisitionReference 0 (1)
BackOrderIndicator nsA:BackOrderIndicator 0 (1)
PurchaseOrderReference nsA:PurchaseOrderReference 0 (1)
RouteReference nsA:RouteReference 0 unbounded
BOMReference nsA:BOMReference 0 unbounded
PromisedDeliveryDateTime nsA:PromisedDeliveryDateTime 0 (1)
ScheduledDeliveryDateTime nsA:ScheduledDeliveryDateTime 0 (1)
ActualDeliveryDateTime nsA:ActualDeliveryDateTime 0 (1)
ActualShipDateTime nsA:ActualShipDateTime 0 (1)
DistributionCenterCode nsA:DistributionCenterCode 0 (1)
OrderCommission nsA:OrderCommission 0 unbounded
SalesOrderSubLine nsA:SalesOrderSubLine 0 unbounded
SalesOrderSchedule nsA:SalesOrderSchedule 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
<xs:group> nsA:ItemInstanceGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:SalesOrderLine
