Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: RequestLineType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:StatusEnabledLineType
Containing Schema: OrderManagementComponents.xsd
Abstract

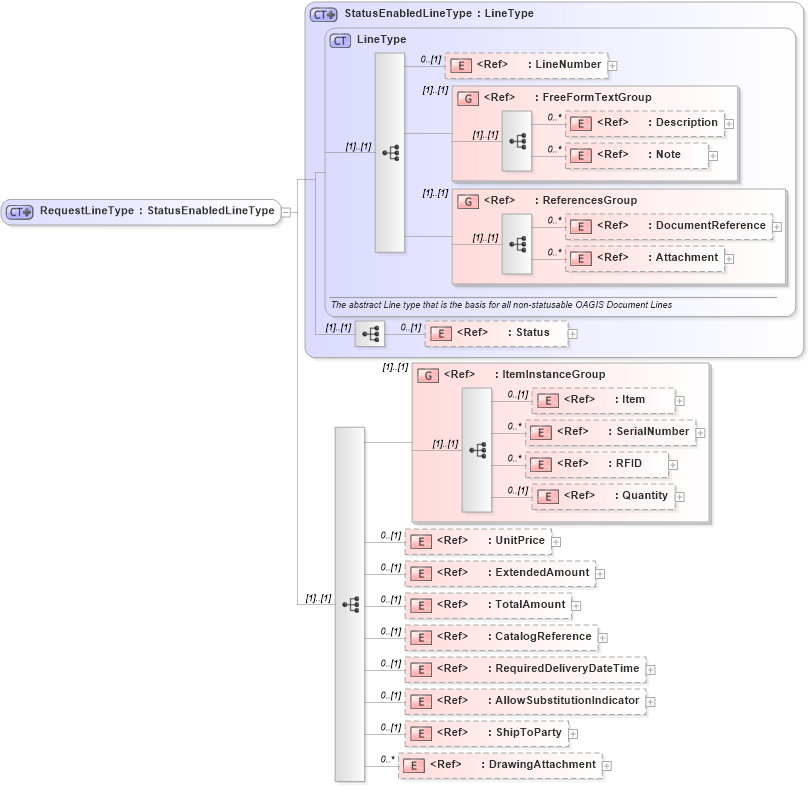

Collapse XSD Schema Diagram:
Drilldown into DrawingAttachment in schema components_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into AllowSubstitutionIndicator in schema fields_xsd Drilldown into RequiredDeliveryDateTime in schema fields_xsd Drilldown into CatalogReference in schema components_xsd Drilldown into TotalAmount in schema fields_xsd Drilldown into ExtendedAmount in schema fields_xsd Drilldown into UnitPrice in schema components_xsd Drilldown into Quantity in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into SerialNumber in schema fields_xsd Drilldown into Item in schema components_xsd Drilldown into ItemInstanceGroup in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into StatusEnabledLineType in schema components_xsdXSD Diagram of RequestLineType in schema ordermanagementcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="RequestLineType">
    <xsd:complexContent>
        <xsd:extension base="StatusEnabledLineType">
            <xsd:sequence>
                <xsd:group ref="ItemInstanceGroup" />
                <xsd:element ref="UnitPrice" minOccurs="0" />
                <xsd:element ref="ExtendedAmount" minOccurs="0" />
                <xsd:element ref="TotalAmount" minOccurs="0" />
                <xsd:element ref="CatalogReference" minOccurs="0" />
                <xsd:element ref="RequiredDeliveryDateTime" minOccurs="0" />
                <xsd:element ref="AllowSubstitutionIndicator" minOccurs="0" />
                <xsd:element ref="ShipToParty" minOccurs="0" />
                <xsd:element ref="DrawingAttachment" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
Item nsA:Item 0 (1)
SerialNumber nsA:SerialNumber 0 unbounded
RFID nsA:RFID 0 unbounded
Quantity nsA:Quantity 0 (1)
UnitPrice nsA:UnitPrice 0 (1)
ExtendedAmount nsA:ExtendedAmount 0 (1)
TotalAmount nsA:TotalAmount 0 (1)
CatalogReference nsA:CatalogReference 0 (1)
RequiredDeliveryDateTime nsA:RequiredDeliveryDateTime 0 (1)
AllowSubstitutionIndicator nsA:AllowSubstitutionIndicator 0 (1)
ShipToParty nsA:ShipToParty 0 (1)
DrawingAttachment nsA:DrawingAttachment 0 unbounded
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
<xs:group> nsA:ItemInstanceGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:ProcurementLineType, nsA:RequisitionLineType
