Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: PurchaseOrderLine
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:PurchaseOrderLineType
Containing Schema: PurchaseOrder.xsd
Abstract
Documentation:
The Purchase Order Line indicates the ordered item or product ordered along with the quantity, price and other descriptive information. It is also possible to provide additional Parties, PaymentTerms, Charge, and Attachment information as needed at the line level. At least one occurrence of this Component is required for each occurrence of the Purchase Order.

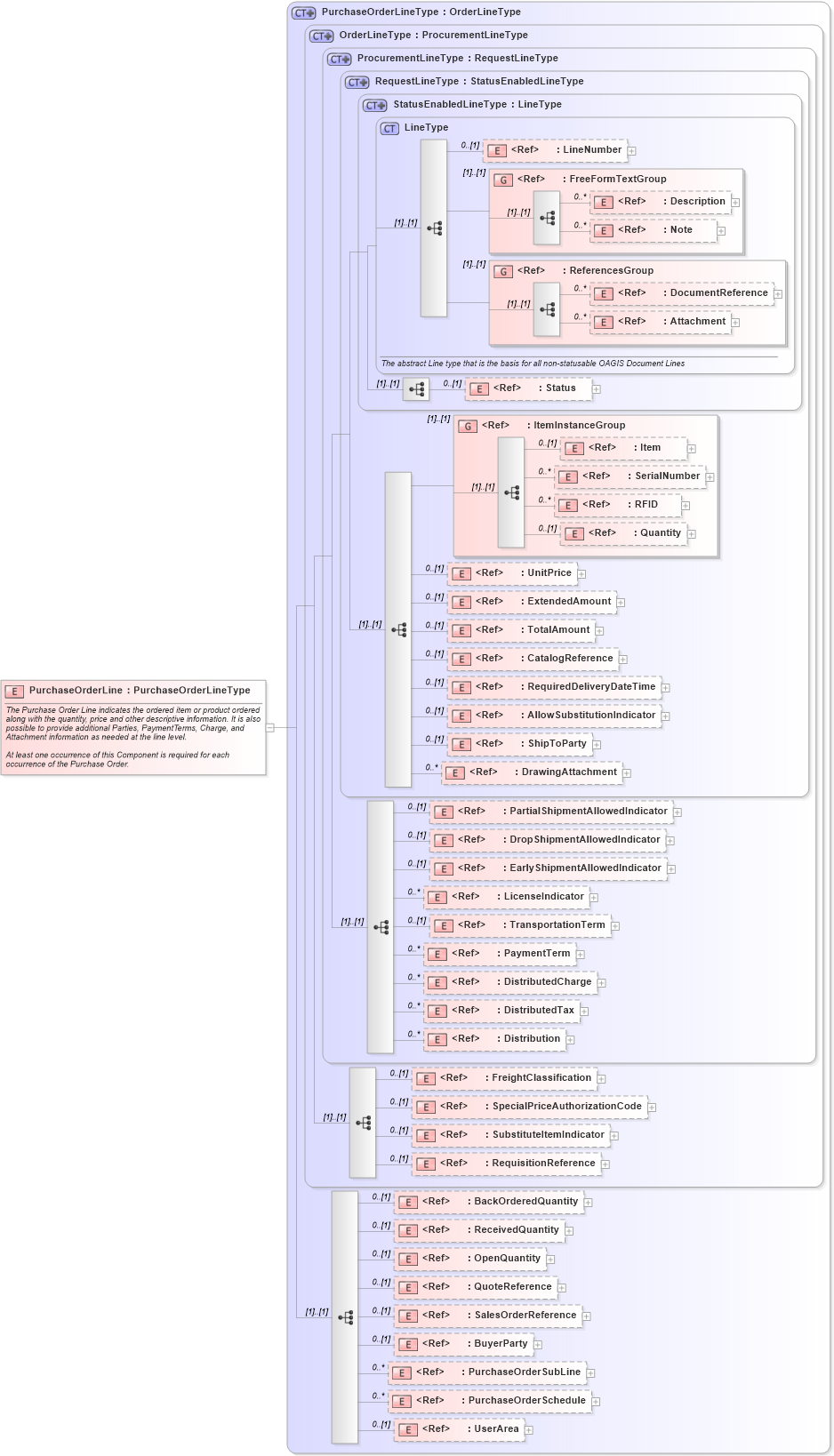

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into PurchaseOrderSchedule in schema purchaseorder_xsd Drilldown into PurchaseOrderSubLine in schema purchaseorder_xsd Drilldown into BuyerParty in schema components_xsd Drilldown into SalesOrderReference in schema components_xsd Drilldown into QuoteReference in schema components_xsd Drilldown into OpenQuantity in schema fields_xsd Drilldown into ReceivedQuantity in schema fields_xsd Drilldown into BackOrderedQuantity in schema fields_xsd Drilldown into RequisitionReference in schema components_xsd Drilldown into SubstituteItemIndicator in schema fields_xsd Drilldown into SpecialPriceAuthorizationCode in schema fields_xsd Drilldown into FreightClassification in schema components_xsd Drilldown into Distribution in schema components_xsd Drilldown into DistributedTax in schema components_xsd Drilldown into DistributedCharge in schema components_xsd Drilldown into PaymentTerm in schema components_xsd Drilldown into TransportationTerm in schema components_xsd Drilldown into LicenseIndicator in schema fields_xsd Drilldown into EarlyShipmentAllowedIndicator in schema fields_xsd Drilldown into DropShipmentAllowedIndicator in schema fields_xsd Drilldown into PartialShipmentAllowedIndicator in schema fields_xsd Drilldown into DrawingAttachment in schema components_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into AllowSubstitutionIndicator in schema fields_xsd Drilldown into RequiredDeliveryDateTime in schema fields_xsd Drilldown into CatalogReference in schema components_xsd Drilldown into TotalAmount in schema fields_xsd Drilldown into ExtendedAmount in schema fields_xsd Drilldown into UnitPrice in schema components_xsd Drilldown into Quantity in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into SerialNumber in schema fields_xsd Drilldown into Item in schema components_xsd Drilldown into ItemInstanceGroup in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into StatusEnabledLineType in schema components_xsd Drilldown into RequestLineType in schema ordermanagementcomponents_xsd Drilldown into ProcurementLineType in schema ordermanagementcomponents_xsd Drilldown into OrderLineType in schema ordermanagementcomponents_xsd Drilldown into PurchaseOrderLineType in schema purchaseorder_xsdXSD Diagram of PurchaseOrderLine in schema purchaseorder_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="PurchaseOrderLine" type="PurchaseOrderLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The Purchase Order Line indicates the ordered item or product ordered along with the quantity, price and other descriptive information. It is also possible to provide additional Parties, PaymentTerms, Charge, and Attachment information as needed at the line level.

At least one occurrence of this Component is required for each occurrence of the Purchase Order.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
Item nsA:Item 0 (1)
SerialNumber nsA:SerialNumber 0 unbounded
RFID nsA:RFID 0 unbounded
Quantity nsA:Quantity 0 (1)
UnitPrice nsA:UnitPrice 0 (1)
ExtendedAmount nsA:ExtendedAmount 0 (1)
TotalAmount nsA:TotalAmount 0 (1)
CatalogReference nsA:CatalogReference 0 (1)
RequiredDeliveryDateTime nsA:RequiredDeliveryDateTime 0 (1)
AllowSubstitutionIndicator nsA:AllowSubstitutionIndicator 0 (1)
ShipToParty nsA:ShipToParty 0 (1)
DrawingAttachment nsA:DrawingAttachment 0 unbounded
PartialShipmentAllowedIndicator nsA:PartialShipmentAllowedIndicator 0 (1)
DropShipmentAllowedIndicator nsA:DropShipmentAllowedIndicator 0 (1)
EarlyShipmentAllowedIndicator nsA:EarlyShipmentAllowedIndicator 0 (1)
LicenseIndicator nsA:LicenseIndicator 0 unbounded
TransportationTerm nsA:TransportationTerm 0 (1)
PaymentTerm nsA:PaymentTerm 0 unbounded
DistributedCharge nsA:DistributedCharge 0 unbounded
DistributedTax nsA:DistributedTax 0 unbounded
Distribution nsA:Distribution 0 unbounded
FreightClassification nsA:FreightClassification 0 (1)
SpecialPriceAuthorizationCode nsA:SpecialPriceAuthorizationCode 0 (1)
SubstituteItemIndicator nsA:SubstituteItemIndicator 0 (1)
RequisitionReference nsA:RequisitionReference 0 (1)
BackOrderedQuantity nsA:BackOrderedQuantity 0 (1)
ReceivedQuantity nsA:ReceivedQuantity 0 (1)
OpenQuantity nsA:OpenQuantity 0 (1)
QuoteReference nsA:QuoteReference 0 (1)
SalesOrderReference nsA:SalesOrderReference 0 (1)
BuyerParty nsA:BuyerParty 0 (1)
PurchaseOrderSubLine nsA:PurchaseOrderSubLine 0 unbounded
PurchaseOrderSchedule nsA:PurchaseOrderSchedule 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
<xs:group> nsA:ItemInstanceGroup (1) (1)
Collapse Derivation Tree:
