Definition Type: ComplexType
Name: SalesTaskType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: CRMComponents.xsd
Abstract

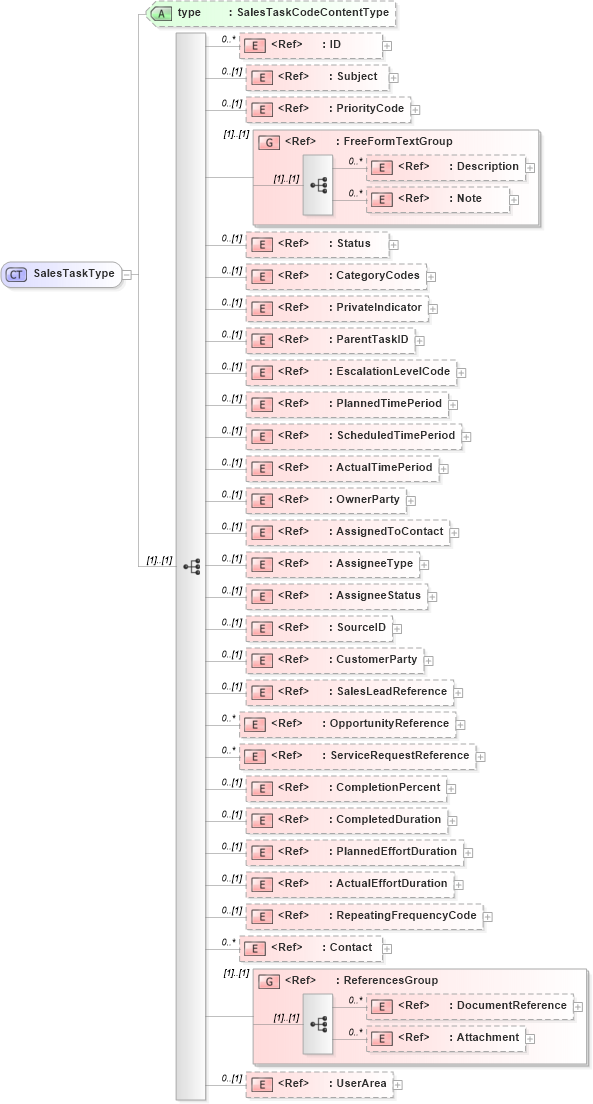

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Contact in schema components_xsd Drilldown into RepeatingFrequencyCode in schema fields_xsd Drilldown into ActualEffortDuration in schema fields_xsd Drilldown into PlannedEffortDuration in schema fields_xsd Drilldown into CompletedDuration in schema fields_xsd Drilldown into CompletionPercent in schema fields_xsd Drilldown into ServiceRequestReference in schema components_xsd Drilldown into OpportunityReference in schema components_xsd Drilldown into SalesLeadReference in schema components_xsd Drilldown into CustomerParty in schema components_xsd Drilldown into SourceID in schema fields_xsd Drilldown into AssigneeStatus in schema components_xsd Drilldown into AssigneeType in schema fields_xsd Drilldown into AssignedToContact in schema components_xsd Drilldown into OwnerParty in schema components_xsd Drilldown into ActualTimePeriod in schema components_xsd Drilldown into ScheduledTimePeriod in schema components_xsd Drilldown into PlannedTimePeriod in schema components_xsd Drilldown into EscalationLevelCode in schema fields_xsd Drilldown into ParentTaskID in schema fields_xsd Drilldown into PrivateIndicator in schema fields_xsd Drilldown into CategoryCodes in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into PriorityCode in schema fields_xsd Drilldown into Subject in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into type in schema crmcomponents_xsdXSD Diagram of SalesTaskType in schema crmcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="SalesTaskType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Subject" minOccurs="0" />
        <xsd:element ref="PriorityCode" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" />
        <xsd:element ref="Status" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Task status such as in plannig, in prorgress, completed</xsd:documentation>
                <xsd:documentation>Task status such as in plannig, in prorgress, completed</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CategoryCodes" minOccurs="0" />
        <xsd:element ref="PrivateIndicator" minOccurs="0" />
        <xsd:element ref="ParentTaskID" minOccurs="0" />
        <xsd:element ref="EscalationLevelCode" minOccurs="0" />
        <xsd:element ref="PlannedTimePeriod" minOccurs="0" />
        <xsd:element ref="ScheduledTimePeriod" minOccurs="0" />
        <xsd:element ref="ActualTimePeriod" minOccurs="0" />
        <xsd:element ref="OwnerParty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Genreally the creator of task is the Owner, although in some cases the ownership could be transferred too.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AssignedToContact" minOccurs="0" />
        <xsd:element ref="AssigneeType" minOccurs="0" />
        <xsd:element ref="AssigneeStatus" minOccurs="0" />
        <xsd:element ref="SourceID" minOccurs="0" />
        <xsd:element ref="CustomerParty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>The task is about what type of Customer "Organization", "Person" or "RelationShips" etc. ??? This should be a Base type</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SalesLeadReference" minOccurs="0" />
        <xsd:element ref="OpportunityReference" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ServiceRequestReference" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CompletionPercent" minOccurs="0" />
        <xsd:element ref="CompletedDuration" minOccurs="0" />
        <xsd:element ref="PlannedEffortDuration" minOccurs="0" />
        <xsd:element ref="ActualEffortDuration" minOccurs="0" />
        <xsd:element ref="RepeatingFrequencyCode" minOccurs="0" />
        <xsd:element ref="Contact" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="ReferencesGroup" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="type" type="SalesTaskCodeContentType" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
Subject nsA:Subject 0 (1)
PriorityCode nsA:PriorityCode 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Status nsA:Status 0 (1)
CategoryCodes nsA:CategoryCodes 0 (1)
PrivateIndicator nsA:PrivateIndicator 0 (1)
ParentTaskID nsA:ParentTaskID 0 (1)
EscalationLevelCode nsA:EscalationLevelCode 0 (1)
PlannedTimePeriod nsA:PlannedTimePeriod 0 (1)
ScheduledTimePeriod nsA:ScheduledTimePeriod 0 (1)
ActualTimePeriod nsA:ActualTimePeriod 0 (1)
OwnerParty nsA:OwnerParty 0 (1)
AssignedToContact nsA:AssignedToContact 0 (1)
AssigneeType nsA:AssigneeType 0 (1)
AssigneeStatus nsA:AssigneeStatus 0 (1)
SourceID nsA:SourceID 0 (1)
CustomerParty nsA:CustomerParty 0 (1)
SalesLeadReference nsA:SalesLeadReference 0 (1)
OpportunityReference nsA:OpportunityReference 0 unbounded
ServiceRequestReference nsA:ServiceRequestReference 0 unbounded
CompletionPercent nsA:CompletionPercent 0 (1)
CompletedDuration nsA:CompletedDuration 0 (1)
PlannedEffortDuration nsA:PlannedEffortDuration 0 (1)
ActualEffortDuration nsA:ActualEffortDuration 0 (1)
RepeatingFrequencyCode nsA:RepeatingFrequencyCode 0 (1)
Contact nsA:Contact 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type Optional
Collapse Derivation Tree:
Collapse References:
nsA:SalesTask
