Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: SequenceScheduleHeaderType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ScheduleHeaderType
Containing Schema: SequenceSchedule.xsd
Abstract

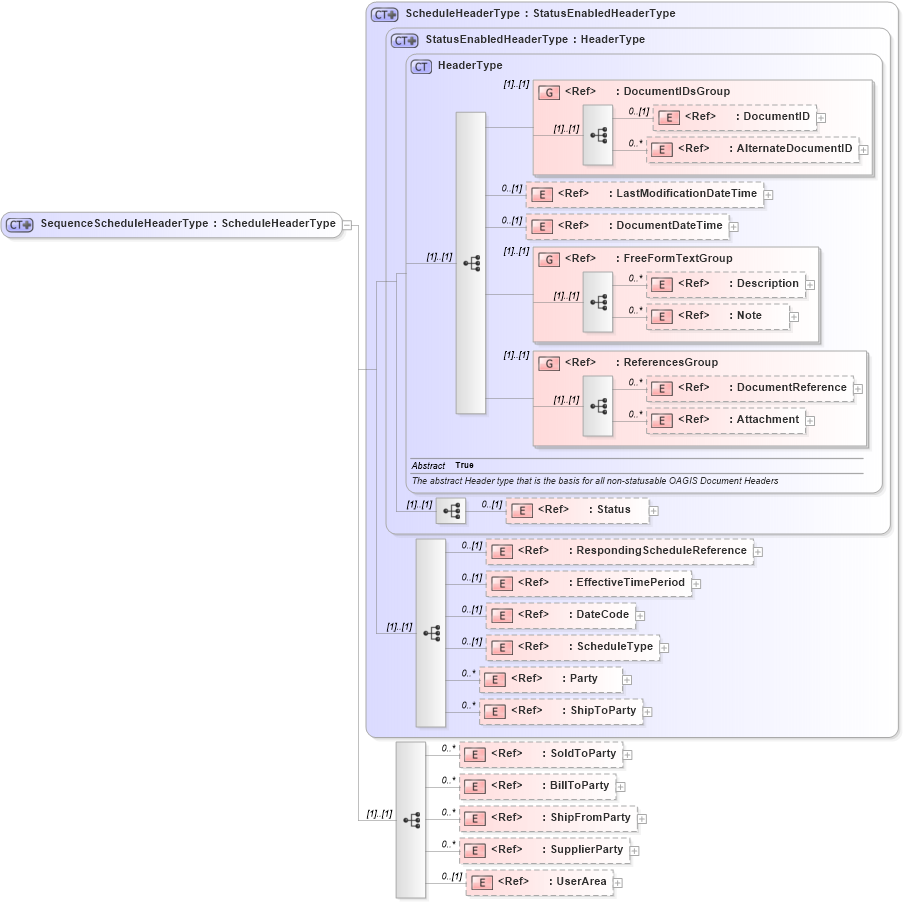

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into SupplierParty in schema components_xsd Drilldown into ShipFromParty in schema components_xsd Drilldown into BillToParty in schema components_xsd Drilldown into SoldToParty in schema components_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into Party in schema components_xsd Drilldown into ScheduleType in schema fields_xsd Drilldown into DateCode in schema fields_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into RespondingScheduleReference in schema manufacturingcomponents_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into StatusEnabledHeaderType in schema components_xsd Drilldown into ScheduleHeaderType in schema manufacturingcomponents_xsdXSD Diagram of SequenceScheduleHeaderType in schema sequenceschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="SequenceScheduleHeaderType">
    <xsd:complexContent>
        <xsd:extension base="ScheduleHeaderType">
            <xsd:sequence>
                <xsd:element ref="SoldToParty" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="BillToParty" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ShipFromParty" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="SupplierParty" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
RespondingScheduleReference nsA:RespondingScheduleReference 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
DateCode nsA:DateCode 0 (1)
ScheduleType nsA:ScheduleType 0 (1)
Party nsA:Party 0 unbounded
ShipToParty nsA:ShipToParty 0 unbounded
SoldToParty nsA:SoldToParty 0 unbounded
BillToParty nsA:BillToParty 0 unbounded
ShipFromParty nsA:ShipFromParty 0 unbounded
SupplierParty nsA:SupplierParty 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:SequenceScheduleHeader
