Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ShipmentHeader
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShipmentHeaderType
Containing Schema: Shipment.xsd
Abstract
Documentation:
Provides general information about the document that is used to transport a specific quantity of material goods from a supplier to a single customer business partner destination.

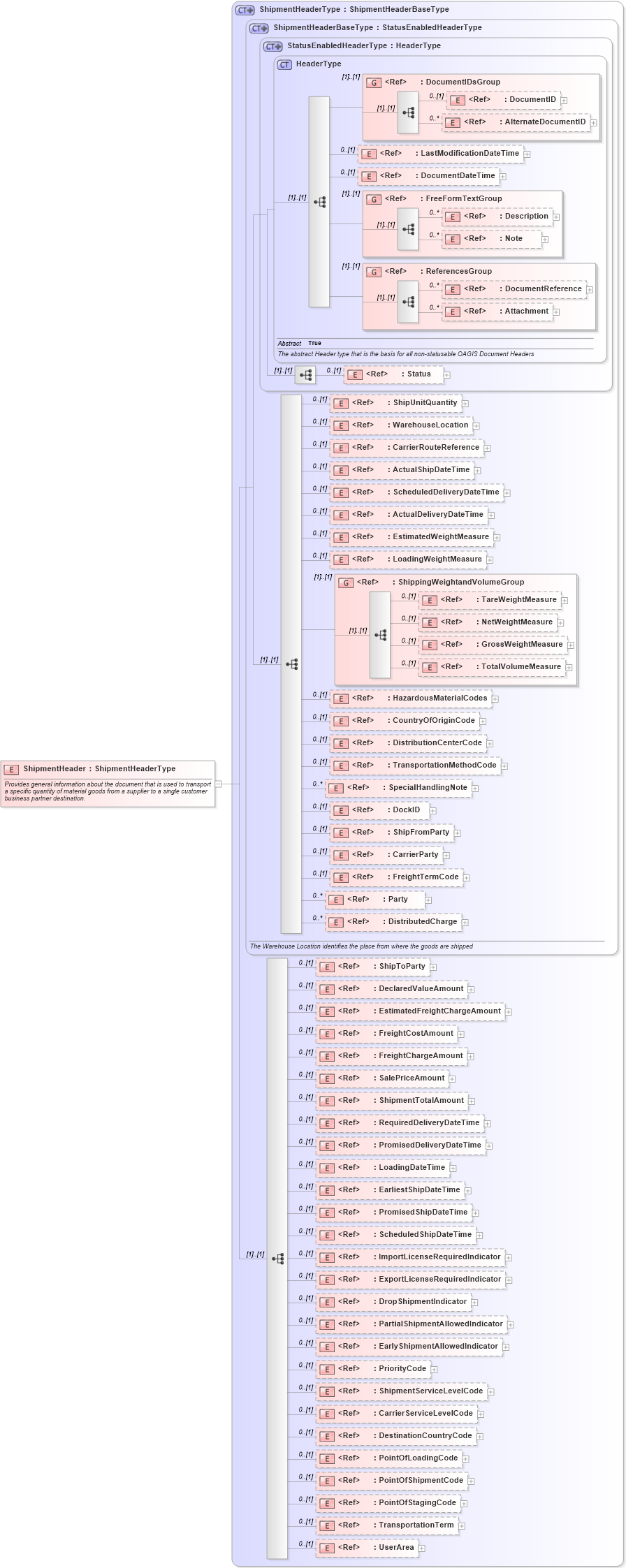

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into TransportationTerm in schema components_xsd Drilldown into PointOfStagingCode in schema fields_xsd Drilldown into PointOfShipmentCode in schema fields_xsd Drilldown into PointOfLoadingCode in schema fields_xsd Drilldown into DestinationCountryCode in schema fields_xsd Drilldown into CarrierServiceLevelCode in schema fields_xsd Drilldown into ShipmentServiceLevelCode in schema fields_xsd Drilldown into PriorityCode in schema fields_xsd Drilldown into EarlyShipmentAllowedIndicator in schema fields_xsd Drilldown into PartialShipmentAllowedIndicator in schema fields_xsd Drilldown into DropShipmentIndicator in schema fields_xsd Drilldown into ExportLicenseRequiredIndicator in schema fields_xsd Drilldown into ImportLicenseRequiredIndicator in schema fields_xsd Drilldown into ScheduledShipDateTime in schema fields_xsd Drilldown into PromisedShipDateTime in schema fields_xsd Drilldown into EarliestShipDateTime in schema fields_xsd Drilldown into LoadingDateTime in schema fields_xsd Drilldown into PromisedDeliveryDateTime in schema fields_xsd Drilldown into RequiredDeliveryDateTime in schema fields_xsd Drilldown into ShipmentTotalAmount in schema fields_xsd Drilldown into SalePriceAmount in schema fields_xsd Drilldown into FreightChargeAmount in schema fields_xsd Drilldown into FreightCostAmount in schema fields_xsd Drilldown into EstimatedFreightChargeAmount in schema fields_xsd Drilldown into DeclaredValueAmount in schema fields_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into DistributedCharge in schema components_xsd Drilldown into Party in schema components_xsd Drilldown into FreightTermCode in schema fields_xsd Drilldown into CarrierParty in schema components_xsd Drilldown into ShipFromParty in schema components_xsd Drilldown into DockID in schema fields_xsd Drilldown into SpecialHandlingNote in schema fields_xsd Drilldown into TransportationMethodCode in schema fields_xsd Drilldown into DistributionCenterCode in schema fields_xsd Drilldown into CountryOfOriginCode in schema fields_xsd Drilldown into HazardousMaterialCodes in schema components_xsd Drilldown into TotalVolumeMeasure in schema fields_xsd Drilldown into GrossWeightMeasure in schema fields_xsd Drilldown into NetWeightMeasure in schema fields_xsd Drilldown into TareWeightMeasure in schema fields_xsd Drilldown into ShippingWeightandVolumeGroup in schema components_xsd Drilldown into LoadingWeightMeasure in schema fields_xsd Drilldown into EstimatedWeightMeasure in schema fields_xsd Drilldown into ActualDeliveryDateTime in schema fields_xsd Drilldown into ScheduledDeliveryDateTime in schema fields_xsd Drilldown into ActualShipDateTime in schema fields_xsd Drilldown into CarrierRouteReference in schema components_xsd Drilldown into WarehouseLocation in schema components_xsd Drilldown into ShipUnitQuantity in schema fields_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into StatusEnabledHeaderType in schema components_xsd Drilldown into ShipmentHeaderBaseType in schema logisticscomponents_xsd Drilldown into ShipmentHeaderType in schema shipment_xsdXSD Diagram of ShipmentHeader in schema shipment_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ShipmentHeader" type="ShipmentHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Provides general information about the document that is used to transport a specific quantity of material goods from a supplier to a single customer business partner destination.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
ShipUnitQuantity nsA:ShipUnitQuantity 0 (1)
WarehouseLocation nsA:WarehouseLocation 0 (1)
CarrierRouteReference nsA:CarrierRouteReference 0 (1)
ActualShipDateTime nsA:ActualShipDateTime 0 (1)
ScheduledDeliveryDateTime nsA:ScheduledDeliveryDateTime 0 (1)
ActualDeliveryDateTime nsA:ActualDeliveryDateTime 0 (1)
EstimatedWeightMeasure nsA:EstimatedWeightMeasure 0 (1)
LoadingWeightMeasure nsA:LoadingWeightMeasure 0 (1)
TareWeightMeasure nsA:TareWeightMeasure 0 (1)
NetWeightMeasure nsA:NetWeightMeasure 0 (1)
GrossWeightMeasure nsA:GrossWeightMeasure 0 (1)
TotalVolumeMeasure nsA:TotalVolumeMeasure 0 (1)
HazardousMaterialCodes nsA:HazardousMaterialCodes 0 (1)
CountryOfOriginCode nsA:CountryOfOriginCode 0 (1)
DistributionCenterCode nsA:DistributionCenterCode 0 (1)
TransportationMethodCode nsA:TransportationMethodCode 0 (1)
SpecialHandlingNote nsA:SpecialHandlingNote 0 unbounded
DockID nsA:DockID 0 (1)
ShipFromParty nsA:ShipFromParty 0 (1)
CarrierParty nsA:CarrierParty 0 (1)
FreightTermCode nsA:FreightTermCode 0 (1)
Party nsA:Party 0 unbounded
DistributedCharge nsA:DistributedCharge 0 unbounded
ShipToParty nsA:ShipToParty 0 (1)
DeclaredValueAmount nsA:DeclaredValueAmount 0 (1)
EstimatedFreightChargeAmount nsA:EstimatedFreightChargeAmount 0 (1)
FreightCostAmount nsA:FreightCostAmount 0 (1)
FreightChargeAmount nsA:FreightChargeAmount 0 (1)
SalePriceAmount nsA:SalePriceAmount 0 (1)
ShipmentTotalAmount nsA:ShipmentTotalAmount 0 (1)
RequiredDeliveryDateTime nsA:RequiredDeliveryDateTime 0 (1)
PromisedDeliveryDateTime nsA:PromisedDeliveryDateTime 0 (1)
LoadingDateTime nsA:LoadingDateTime 0 (1)
EarliestShipDateTime nsA:EarliestShipDateTime 0 (1)
PromisedShipDateTime nsA:PromisedShipDateTime 0 (1)
ScheduledShipDateTime nsA:ScheduledShipDateTime 0 (1)
ImportLicenseRequiredIndicator nsA:ImportLicenseRequiredIndicator 0 (1)
ExportLicenseRequiredIndicator nsA:ExportLicenseRequiredIndicator 0 (1)
DropShipmentIndicator nsA:DropShipmentIndicator 0 (1)
PartialShipmentAllowedIndicator nsA:PartialShipmentAllowedIndicator 0 (1)
EarlyShipmentAllowedIndicator nsA:EarlyShipmentAllowedIndicator 0 (1)
PriorityCode nsA:PriorityCode 0 (1)
ShipmentServiceLevelCode nsA:ShipmentServiceLevelCode 0 (1)
CarrierServiceLevelCode nsA:CarrierServiceLevelCode 0 (1)
DestinationCountryCode nsA:DestinationCountryCode 0 (1)
PointOfLoadingCode nsA:PointOfLoadingCode 0 (1)
PointOfShipmentCode nsA:PointOfShipmentCode 0 (1)
PointOfStagingCode nsA:PointOfStagingCode 0 (1)
TransportationTerm nsA:TransportationTerm 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
<xs:group> nsA:ShippingWeightandVolumeGroup (1) (1)
Collapse Derivation Tree:
