Definition Type: Element
Name: ShipmentUnit
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShipmentUnitType
Containing Schema: LogisticsComponents.xsd
Abstract
Documentation:
The ShipmentUnit represents a single trackable, uniquely identifiable assembly or container containing a specific collection of goods inventory that is packaged by a supplier for carrier transportation to a customer business partner destination The ShipmentUnit component identifies and describes the physical shipping container(s) and internal packaging structure of the delivered goods. The ShipmentUnit component is typically constructed to describe the result of an inventory picking and packing operation. A ShipmentUnit is generally the smallest "thing" that can be individually moved and tracked throughout a carrier's transportation network. The physical size, inventory, content and internal nested container complexity within a ShipUnit is arbitrary. The ShipUnit component was specifically designed to be transportation mode independent. It may be used to represent any uniquely identifiable and trackable assembly, container or vessel including, but not limited to: a parcel express package; a pallet of identical or mixed items; a truck trailer, rail car or an ocean cargo container. The ShipmentUnit complements the line-item oriented summary information provided in the Shipment's ShipmentItem and InventoryDetail component with detailed information to accurately describe complex shipping unit assemblies and item packaging.

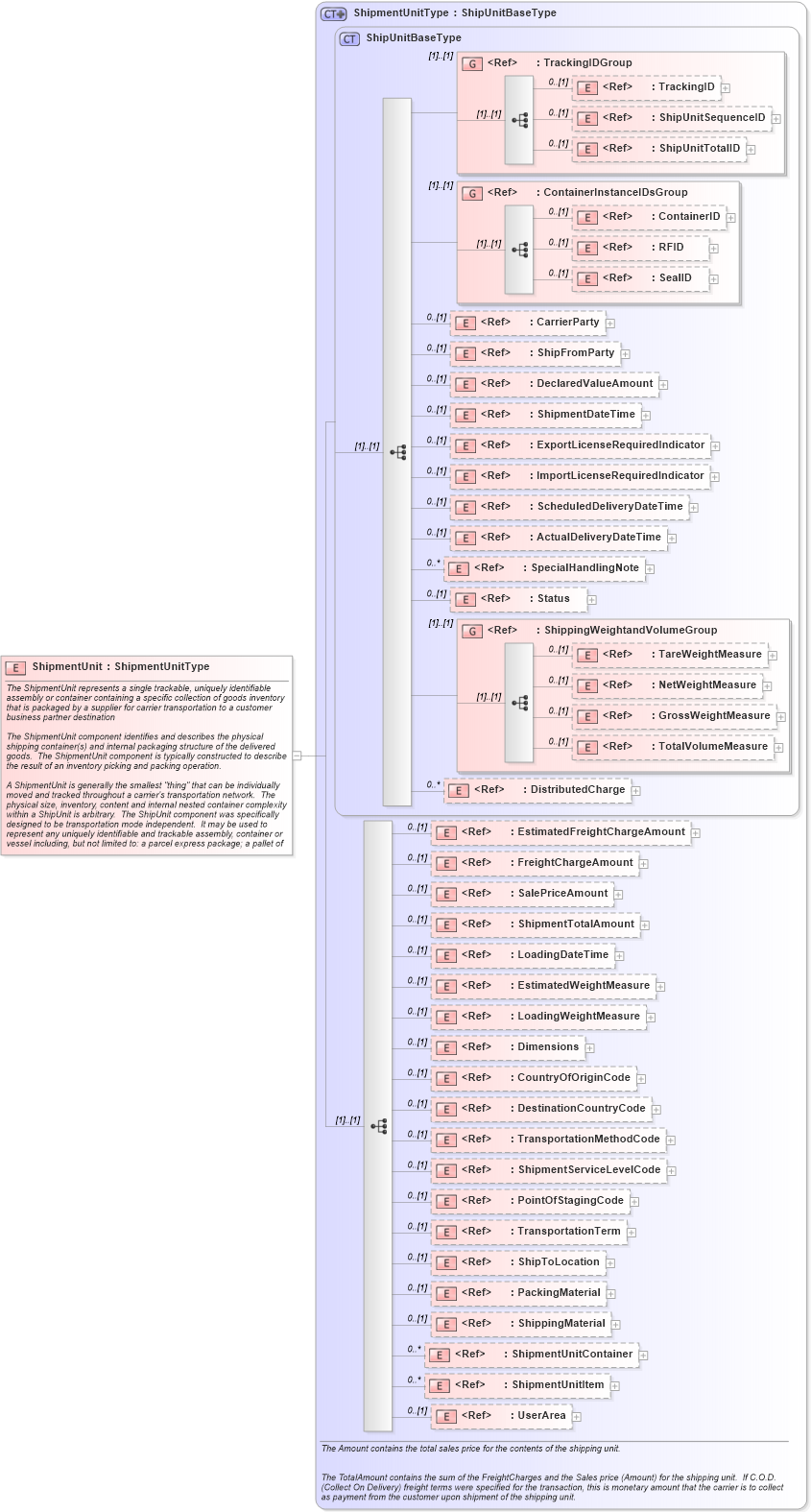

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ShipmentUnitItem in schema logisticscomponents_xsd Drilldown into ShipmentUnitContainer in schema logisticscomponents_xsd Drilldown into ShippingMaterial in schema components_xsd Drilldown into PackingMaterial in schema components_xsd Drilldown into ShipToLocation in schema components_xsd Drilldown into TransportationTerm in schema components_xsd Drilldown into PointOfStagingCode in schema fields_xsd Drilldown into ShipmentServiceLevelCode in schema fields_xsd Drilldown into TransportationMethodCode in schema fields_xsd Drilldown into DestinationCountryCode in schema fields_xsd Drilldown into CountryOfOriginCode in schema fields_xsd Drilldown into Dimensions in schema components_xsd Drilldown into LoadingWeightMeasure in schema fields_xsd Drilldown into EstimatedWeightMeasure in schema fields_xsd Drilldown into LoadingDateTime in schema fields_xsd Drilldown into ShipmentTotalAmount in schema fields_xsd Drilldown into SalePriceAmount in schema fields_xsd Drilldown into FreightChargeAmount in schema fields_xsd Drilldown into EstimatedFreightChargeAmount in schema fields_xsd Drilldown into DistributedCharge in schema components_xsd Drilldown into TotalVolumeMeasure in schema fields_xsd Drilldown into GrossWeightMeasure in schema fields_xsd Drilldown into NetWeightMeasure in schema fields_xsd Drilldown into TareWeightMeasure in schema fields_xsd Drilldown into ShippingWeightandVolumeGroup in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into SpecialHandlingNote in schema fields_xsd Drilldown into ActualDeliveryDateTime in schema fields_xsd Drilldown into ScheduledDeliveryDateTime in schema fields_xsd Drilldown into ImportLicenseRequiredIndicator in schema fields_xsd Drilldown into ExportLicenseRequiredIndicator in schema fields_xsd Drilldown into ShipmentDateTime in schema fields_xsd Drilldown into DeclaredValueAmount in schema fields_xsd Drilldown into ShipFromParty in schema components_xsd Drilldown into CarrierParty in schema components_xsd Drilldown into SealID in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into ContainerID in schema fields_xsd Drilldown into ContainerInstanceIDsGroup in schema logisticscomponents_xsd Drilldown into ShipUnitTotalID in schema fields_xsd Drilldown into ShipUnitSequenceID in schema fields_xsd Drilldown into TrackingID in schema fields_xsd Drilldown into TrackingIDGroup in schema logisticscomponents_xsd Drilldown into ShipUnitBaseType in schema logisticscomponents_xsd Drilldown into ShipmentUnitType in schema logisticscomponents_xsdXSD Diagram of ShipmentUnit in schema logisticscomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ShipmentUnit" type="ShipmentUnitType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The ShipmentUnit represents a single trackable, uniquely identifiable assembly or container containing a specific collection of goods inventory that is packaged by a supplier for carrier transportation to a customer business partner destination

The ShipmentUnit component identifies and describes the physical shipping container(s) and internal packaging structure of the delivered goods.  The ShipmentUnit component is typically constructed to describe the result of an inventory picking and packing operation.

A ShipmentUnit is generally the smallest "thing" that can be individually moved and tracked throughout a carrier's transportation network.  The physical size, inventory, content and internal nested container complexity within a ShipUnit is arbitrary.  The ShipUnit component was specifically designed to be transportation mode independent.  It may be used to represent any uniquely identifiable and trackable assembly, container or vessel including, but not limited to: a parcel express package; a pallet of identical or mixed items; a truck trailer, rail car or an ocean cargo container.

The ShipmentUnit complements the line-item oriented summary information provided in the Shipment's ShipmentItem and InventoryDetail component with detailed information to accurately describe complex shipping unit assemblies and item packaging.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TrackingID nsA:TrackingID 0 (1)
ShipUnitSequenceID nsA:ShipUnitSequenceID 0 (1)
ShipUnitTotalID nsA:ShipUnitTotalID 0 (1)
ContainerID nsA:ContainerID 0 (1)
RFID nsA:RFID 0 (1)
SealID nsA:SealID 0 (1)
CarrierParty nsA:CarrierParty 0 (1)
ShipFromParty nsA:ShipFromParty 0 (1)
DeclaredValueAmount nsA:DeclaredValueAmount 0 (1)
ShipmentDateTime nsA:ShipmentDateTime 0 (1)
ExportLicenseRequiredIndicator nsA:ExportLicenseRequiredIndicator 0 (1)
ImportLicenseRequiredIndicator nsA:ImportLicenseRequiredIndicator 0 (1)
ScheduledDeliveryDateTime nsA:ScheduledDeliveryDateTime 0 (1)
ActualDeliveryDateTime nsA:ActualDeliveryDateTime 0 (1)
SpecialHandlingNote nsA:SpecialHandlingNote 0 unbounded
Status nsA:Status 0 (1)
TareWeightMeasure nsA:TareWeightMeasure 0 (1)
NetWeightMeasure nsA:NetWeightMeasure 0 (1)
GrossWeightMeasure nsA:GrossWeightMeasure 0 (1)
TotalVolumeMeasure nsA:TotalVolumeMeasure 0 (1)
DistributedCharge nsA:DistributedCharge 0 unbounded
EstimatedFreightChargeAmount nsA:EstimatedFreightChargeAmount 0 (1)
FreightChargeAmount nsA:FreightChargeAmount 0 (1)
SalePriceAmount nsA:SalePriceAmount 0 (1)
ShipmentTotalAmount nsA:ShipmentTotalAmount 0 (1)
LoadingDateTime nsA:LoadingDateTime 0 (1)
EstimatedWeightMeasure nsA:EstimatedWeightMeasure 0 (1)
LoadingWeightMeasure nsA:LoadingWeightMeasure 0 (1)
Dimensions nsA:Dimensions 0 (1)
CountryOfOriginCode nsA:CountryOfOriginCode 0 (1)
DestinationCountryCode nsA:DestinationCountryCode 0 (1)
TransportationMethodCode nsA:TransportationMethodCode 0 (1)
ShipmentServiceLevelCode nsA:ShipmentServiceLevelCode 0 (1)
PointOfStagingCode nsA:PointOfStagingCode 0 (1)
TransportationTerm nsA:TransportationTerm 0 (1)
ShipToLocation nsA:ShipToLocation 0 (1)
PackingMaterial nsA:PackingMaterial 0 (1)
ShippingMaterial nsA:ShippingMaterial 0 (1)
ShipmentUnitContainer nsA:ShipmentUnitContainer 0 unbounded
ShipmentUnitItem nsA:ShipmentUnitItem 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:TrackingIDGroup (1) (1)
<xs:group> nsA:ContainerInstanceIDsGroup (1) (1)
<xs:group> nsA:ShippingWeightandVolumeGroup (1) (1)
Collapse Derivation Tree:
