Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ShipmentUnitContainer
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShipmentUnitContainerType
Containing Schema: LogisticsComponents.xsd
Abstract
Documentation:
The ShipmentUnitContainer represents information about an intermediate packaging level within the shipping unit. A ShipmentUnitContainer may or may not have ShipmentUnitItem associated with it

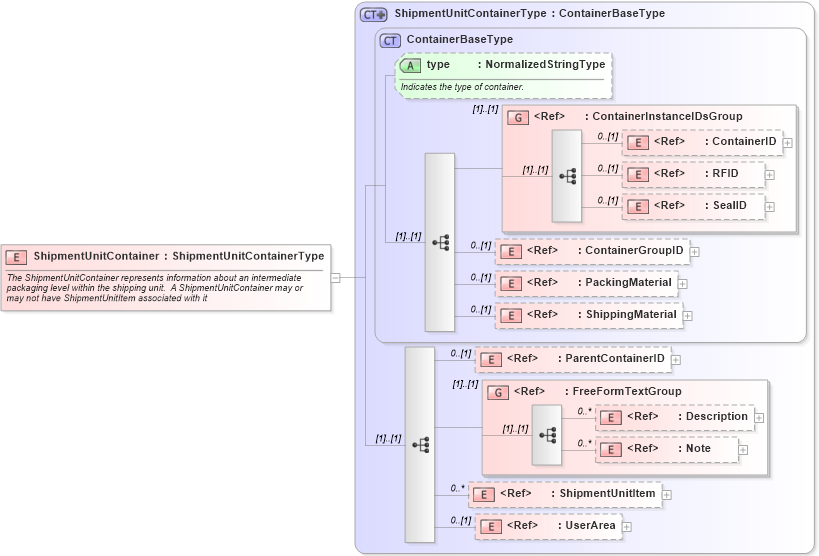

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ShipmentUnitItem in schema logisticscomponents_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ParentContainerID in schema fields_xsd Drilldown into ShippingMaterial in schema components_xsd Drilldown into PackingMaterial in schema components_xsd Drilldown into ContainerGroupID in schema fields_xsd Drilldown into SealID in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into ContainerID in schema fields_xsd Drilldown into ContainerInstanceIDsGroup in schema logisticscomponents_xsd Drilldown into type in schema logisticscomponents_xsd Drilldown into ContainerBaseType in schema logisticscomponents_xsd Drilldown into ShipmentUnitContainerType in schema logisticscomponents_xsdXSD Diagram of ShipmentUnitContainer in schema logisticscomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ShipmentUnitContainer" type="ShipmentUnitContainerType">
    <xsd:annotation>
        <xsd:documentation>The ShipmentUnitContainer represents information about an intermediate packaging level within the shipping unit.  A ShipmentUnitContainer may or may not have ShipmentUnitItem associated with it</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContainerID nsA:ContainerID 0 (1)
RFID nsA:RFID 0 (1)
SealID nsA:SealID 0 (1)
ContainerGroupID nsA:ContainerGroupID 0 (1)
PackingMaterial nsA:PackingMaterial 0 (1)
ShippingMaterial nsA:ShippingMaterial 0 (1)
ParentContainerID nsA:ParentContainerID 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
ShipmentUnitItem nsA:ShipmentUnitItem 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:ContainerInstanceIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type (Optional)
Collapse Derivation Tree:
