Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ShipmentUnitContainerType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ContainerBaseType
Containing Schema: LogisticsComponents.xsd
Abstract

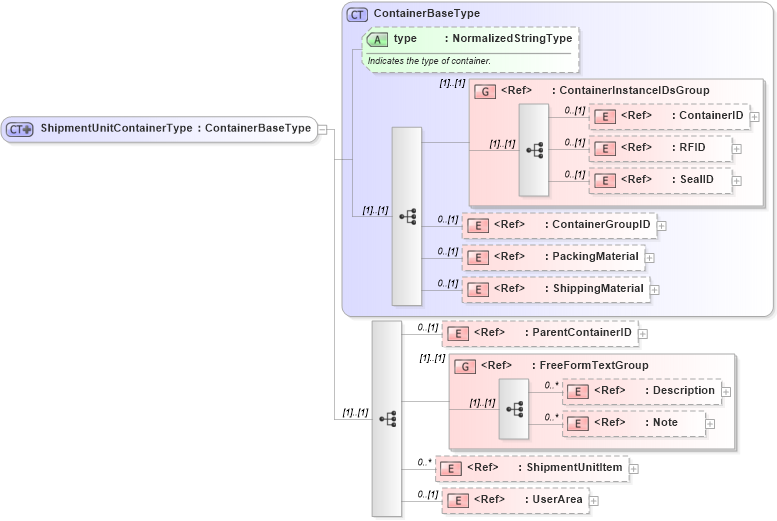

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ShipmentUnitItem in schema logisticscomponents_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ParentContainerID in schema fields_xsd Drilldown into ShippingMaterial in schema components_xsd Drilldown into PackingMaterial in schema components_xsd Drilldown into ContainerGroupID in schema fields_xsd Drilldown into SealID in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into ContainerID in schema fields_xsd Drilldown into ContainerInstanceIDsGroup in schema logisticscomponents_xsd Drilldown into type in schema logisticscomponents_xsd Drilldown into ContainerBaseType in schema logisticscomponents_xsdXSD Diagram of ShipmentUnitContainerType in schema logisticscomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ShipmentUnitContainerType">
    <xsd:complexContent>
        <xsd:extension base="ContainerBaseType">
            <xsd:sequence>
                <xsd:element ref="ParentContainerID" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the identifier of the container that physically holds other subordinate containers.</xsd:documentation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the identifier of the container that physically holds other subordinate containers.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="FreeFormTextGroup" />
                <xsd:element ref="ShipmentUnitItem" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContainerID nsA:ContainerID 0 (1)
RFID nsA:RFID 0 (1)
SealID nsA:SealID 0 (1)
ContainerGroupID nsA:ContainerGroupID 0 (1)
PackingMaterial nsA:PackingMaterial 0 (1)
ShippingMaterial nsA:ShippingMaterial 0 (1)
ParentContainerID nsA:ParentContainerID 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
ShipmentUnitItem nsA:ShipmentUnitItem 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:ContainerInstanceIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:ShipmentUnitContainer
