Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: TestingProcedure
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:TestingProcedureType
Containing Schema: RiskControlLibrary.xsd
Abstract

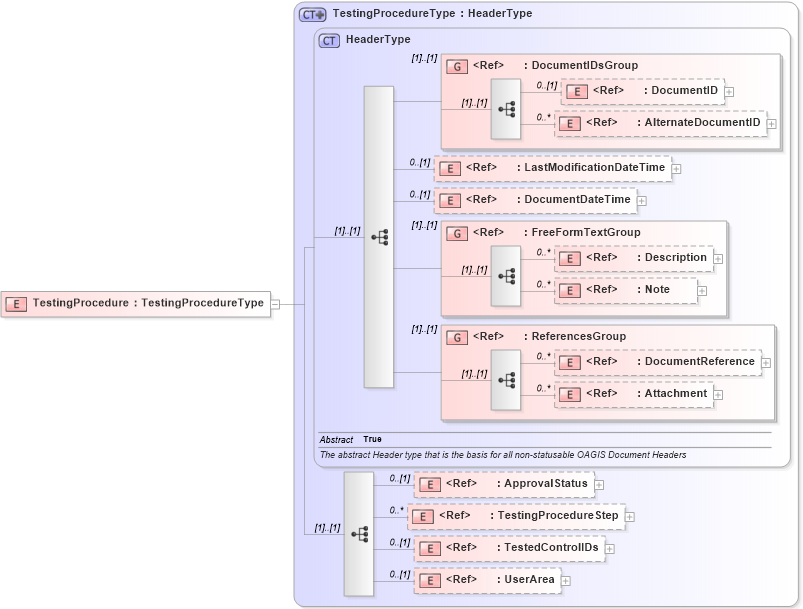

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into TestedControlIDs in schema riskcontrollibrary_xsd Drilldown into TestingProcedureStep in schema riskcontrollibrary_xsd Drilldown into ApprovalStatus in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into TestingProcedureType in schema riskcontrollibrary_xsdXSD Diagram of TestingProcedure in schema riskcontrollibrary_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="TestingProcedure" type="TestingProcedureType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
ApprovalStatus nsA:ApprovalStatus 0 (1)
TestingProcedureStep nsA:TestingProcedureStep 0 unbounded
TestedControlIDs nsA:TestedControlIDs 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
