Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: WIPStatusHeader
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:WIPStatusHeaderType
Containing Schema: WIPStatus.xsd
Abstract

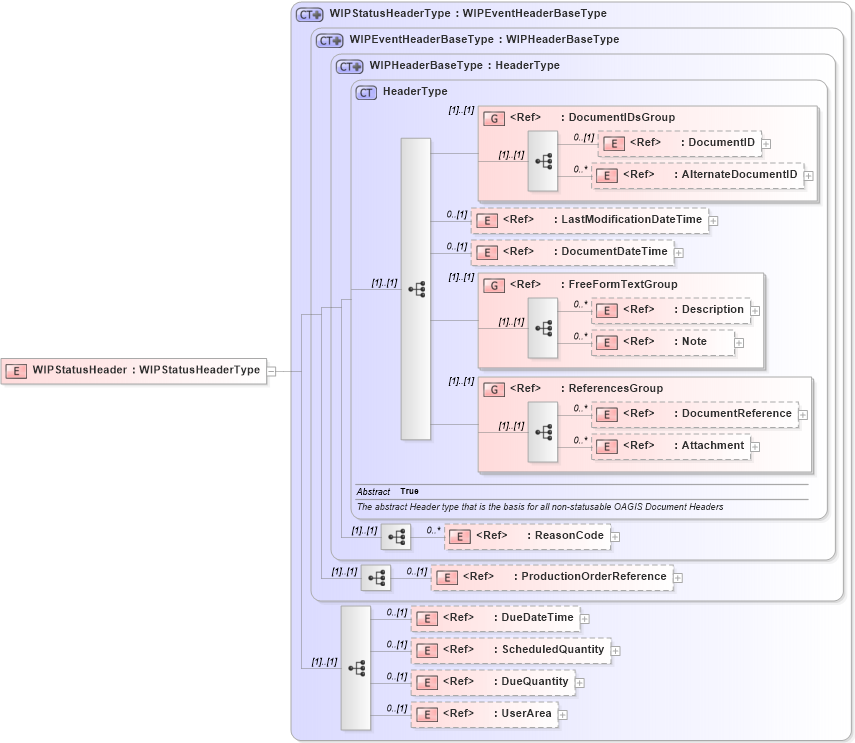

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into DueQuantity in schema fields_xsd Drilldown into ScheduledQuantity in schema fields_xsd Drilldown into DueDateTime in schema fields_xsd Drilldown into ProductionOrderReference in schema components_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into DocumentDateTime in schema fields_xsd Drilldown into LastModificationDateTime in schema fields_xsd Drilldown into AlternateDocumentID in schema components_xsd Drilldown into DocumentID in schema components_xsd Drilldown into DocumentIDsGroup in schema components_xsd Drilldown into HeaderType in schema components_xsd Drilldown into WIPHeaderBaseType in schema manufacturingcomponents_xsd Drilldown into WIPEventHeaderBaseType in schema manufacturingcomponents_xsd Drilldown into WIPStatusHeaderType in schema wipstatus_xsdXSD Diagram of WIPStatusHeader in schema wipstatus_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="WIPStatusHeader" type="WIPStatusHeaderType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID 0 (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
LastModificationDateTime nsA:LastModificationDateTime 0 (1)
DocumentDateTime nsA:DocumentDateTime 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
ReasonCode nsA:ReasonCode 0 unbounded
ProductionOrderReference nsA:ProductionOrderReference 0 (1)
DueDateTime nsA:DueDateTime 0 (1)
ScheduledQuantity nsA:ScheduledQuantity 0 (1)
DueQuantity nsA:DueQuantity 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
