Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: definition_object
Namespace: http://oval.mitre.org/XMLSchema/oval_results#independent
Type: oval_results:definitionObjectType
Containing Schema: independent-oval-results-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract

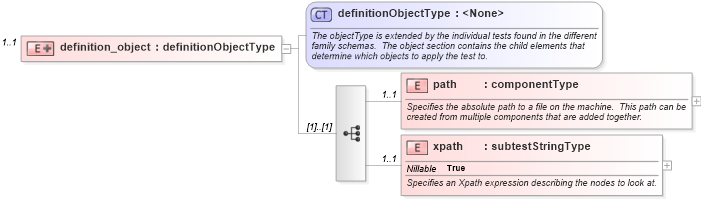

Collapse XSD Schema Diagram:
Drilldown into xpath in schema independent-oval-results-schema_xsd Drilldown into path in schema independent-oval-results-schema_xsd Drilldown into definitionObjectType in schema oval-results-schema_xsdXSD Diagram of definition_object in schema independent-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="definition_object" minOccurs="1" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval_results:definitionObjectType">
                <xsd:sequence>
                    <xsd:element name="path" type="independent:componentType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Specifies the absolute path to a file on the machine.  This path can be created from multiple components that are added together.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>XML File Content Test</parent_test>
                                <cardinality>1</cardinality>
                                <content>none</content>
                                <valid_datatypes>component</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="xpath" type="oval_results:subtestStringType" minOccurs="1" maxOccurs="1" nillable="true">
                        <xsd:annotation>
                            <xsd:documentation>Specifies an Xpath expression describing the nodes to look at.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>XML File Content Test</parent_test>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
path independent:path 1 1
xpath independent:xpath 1 1
Collapse Derivation Tree:
