Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: activedirectory_state
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: oval-def:StateType
Containing Schema: windows-definitions-schema.xsd
Abstract
Documentation:
The activedirectory_state element defines the different information that can be used to evaluate the specified entries in active directory. An active directory test will reference a specific instance of this state that defines the exact settings that need to be evaluated. Please refer to the individual elements in the schema for more details about what each represents.

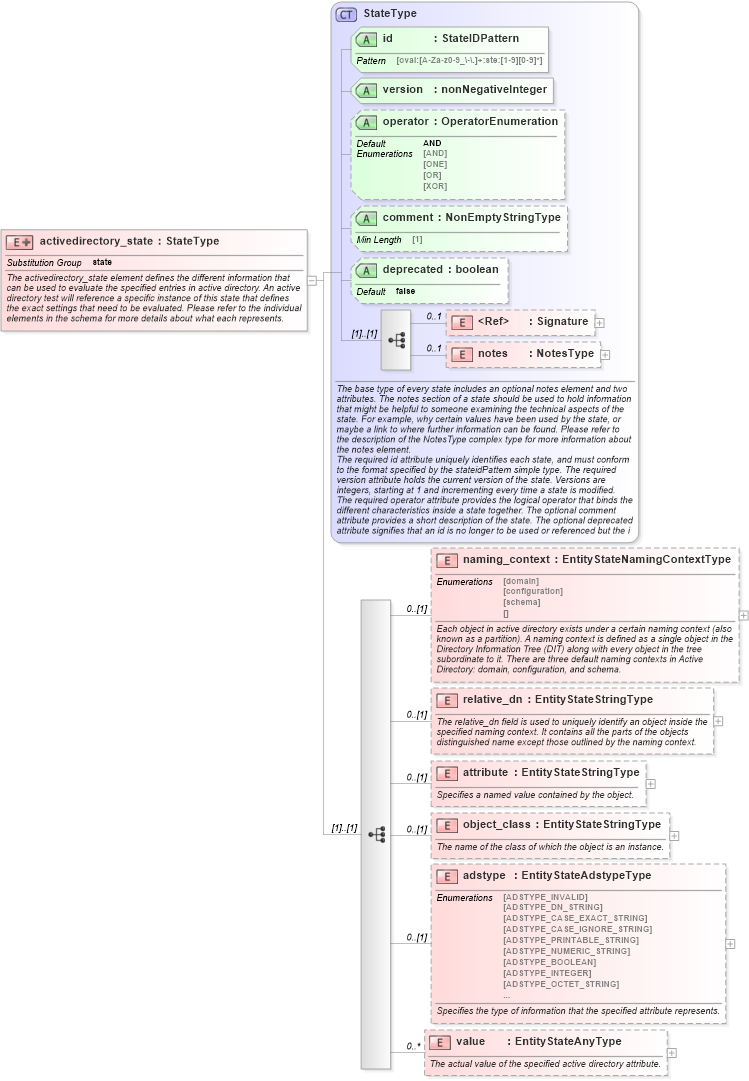

Collapse XSD Schema Diagram:
Drilldown into value in schema windows-definitions-schema_xsd Drilldown into adstype in schema windows-definitions-schema_xsd Drilldown into object_class in schema windows-definitions-schema_xsd Drilldown into attribute in schema windows-definitions-schema_xsd Drilldown into relative_dn in schema windows-definitions-schema_xsd Drilldown into naming_context in schema windows-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into operator in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into StateType in schema oval-definitions-schema_xsdXSD Diagram of activedirectory_state in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="activedirectory_state" substitutionGroup="oval-def:state">
    <xsd:annotation>
        <xsd:documentation>The activedirectory_state element defines the different information that can be used to evaluate the specified entries in active directory. An active directory test will reference a specific instance of this state that defines the exact settings that need to be evaluated. Please refer to the individual elements in the schema for more details about what each represents.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:StateType">
                <xsd:sequence>
                    <xsd:element name="naming_context" type="win-def:EntityStateNamingContextType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>Each object in active directory exists under a certain naming context (also known as a partition). A naming context is defined as a single object in the Directory Information Tree (DIT) along with every object in the tree subordinate to it. There are three default naming contexts in Active Directory: domain, configuration, and schema.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="adstenaming_context" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:activedirectory_state/win-def:naming_context">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the naming_context entity of an activedirectory_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="relative_dn" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The relative_dn field is used to uniquely identify an object inside the specified naming context. It contains all the parts of the objects distinguished name except those outlined by the naming context.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="adsterelative_dn" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:activedirectory_state/win-def:relative_dn">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the relative_dn entity of an activedirectory_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="attribute" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>Specifies a named value contained by the object.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="adsteattribute" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:activedirectory_state/win-def:attribute">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the attribute entity of an activedirectory_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="object_class" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The name of the class of which the object is an instance.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="adsteobject_class" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:activedirectory_state/win-def:object_class">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the object_class entity of an activedirectory_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="adstype" type="win-def:EntityStateAdstypeType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>Specifies the type of information that the specified attribute represents.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="adsteadstype" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:activedirectory_state/win-def:adstype">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the adstype entity of an activedirectory_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="value" type="oval-def:EntityStateAnyType" minOccurs="0" maxOccurs="unbounded">
                        <xsd:annotation>
                            <xsd:documentation>The actual value of the specified active directory attribute.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="adstevalue" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:activedirectory_state/win-def:value">
                                        <sch:assert test="(@datatype='int' and (floor(.) = number(.))) or not(@datatype='int') or not(node())">
                                            <sch:value-of select="../@id" /> - The datatype has been set to 'int' but the value is not an integer.</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
naming_context win-def:naming_context 0 (1)
relative_dn win-def:relative_dn 0 (1)
attribute win-def:attribute 0 (1)
object_class win-def:object_class 0 (1)
adstype win-def:adstype 0 (1)
value win-def:value 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
operator oval-def:operator AND Optional
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:state
