Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: connection_string
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Type: oval-def:EntityObjectStringType
Containing Schema: independent-definitions-schema.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The connection_string entity defines specific connection parameters to be used in connecting to the database. This will help a tool connect to the correct database.

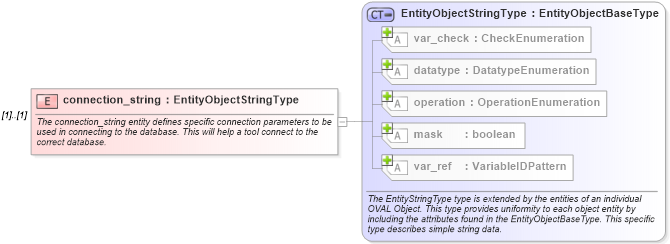

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into EntityObjectStringType in schema oval-definitions-schema_xsdXSD Diagram of connection_string in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="connection_string" type="oval-def:EntityObjectStringType">
    <xsd:annotation>
        <xsd:documentation>The connection_string entity defines specific connection parameters to be used in connecting to the database. This will help a tool connect to the correct database.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="sqlobjconnection_string" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="ind-def:sql_object/ind-def:connection_string">
                    <sch:assert test="not(@datatype) or @datatype='string'">
                        <sch:value-of select="../@id" /> - datatype attribute for the connection_string entity of an sql_object should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
