<xsd:complexType name="EntityBaseType" abstract="true">
<xsd:annotation>
<xsd:documentation>The EntityBaseType complex type is an abstract type that defines the default attributes associated with every entity. Entities can be found in both OVAL Objects and OVAL States and represent the individual properties associated with items found on a system. An example of a single entity would be the path of a file. Another example would be the version of the file.</xsd:documentation>
<xsd:documentation>The optional datatype attribute specifies how the given operation should be applied to the data. (the default datatype is 'string') An example is with the statement 'is 123 less than 98'. If the data is treated as integers the answer is no, but if the data is treated as strings, then the answer is yes. Specifying a datatype details how the less than operation should be performed. Another way of thinking of things is that the datatype attribute specifies how the data should be cast before performing the operation. In the previous example, if the datatype is set to int, then '123' and '98' should be cast as integers. If a cast can not be made, (trying to cast 'abc' to an integer) then an error should be thrown. Another example is applying the 'equal' operation to '1.0.0.0' and '1.0'. With datatype 'string' they are not equal, with datatype 'version' they are.</xsd:documentation>
<xsd:documentation>The optional operation determines how the individual entities should be evaluated. (the default operator is 'equals') Both of these attributes are optional in order to keep the XML clean and readable. The default values are used most of the time and putting datatype="string" and operator="equals" for each element would muddy up the XML.</xsd:documentation>
<xsd:documentation>The optional mask attribute can be used in situations where information is need for evaluation, but this information should not be disclosed in the results file. (maybe due to sensitivity concerns) If the mask attribute is set to 'true', then the value of this field, along with the operation used, should not appear in the results file. Note that this value would appear in the copy of the system characteristics contained in the results file. In this case the results file should make use of the corresponding mask attribute in the system characteristics schema should be set to true and the value should be ommitted. In addition to the value being omitted from the copy of the system characteristics file, the copy of the definition file should also omit the value and operation used for testing.</xsd:documentation>
<xsd:documentation>The optional var_ref attribute refers the value of the entity to a variable element. When supplied, the value(s) associated with the OVAL Variable should be used as the value(s) of the entity. If there is an error computing the value of the variable, then that error should be passed up to the entity referencing it. If the variable being referenced does not have a value (for example, if the variable pertains to the size of a file, but the file does not exist) then one of two results are possible. If the entity is part of an object declaration, then the object is considered to not exist. If the entity is part of a state declaration, then the state comparison should result in an error.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="entityrules" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="oval-def:objects/*/*|oval-def:states/*/*">
<sch:let name="var_ref" value="@var_ref" />
<sch:assert test="((not(@datatype) and (not(@operation) or @operation='equals' or @operation='not equal' or @operation='case insensitive equals' or @operation='case insensitive not equal' or @operation='pattern match')) or (@datatype='binary' and (not(@operation) or @operation='equals' or @operation='not equal')) or (@datatype='boolean' and (not(@operation) or @operation='equals' or @operation='not equal')) or (@datatype='evr_string' and (not(@operation) or @operation='equals' or @operation='not equal' or @operation='greater than' or @operation='greater than or equal' or @operation='less than' or @operation='less than or equal')) or (@datatype='fileset_revision' and (not(@operation) or @operation='equals' or @operation='not equal' or @operation='greater than' or @operation='greater than or equal' or @operation='less than' or @operation='less than or equal')) or (@datatype='float' and (not(@operation) or @operation='equals' or @operation='not equal' or @operation='greater than' or @operation='greater than or equal' or @operation='less than' or @operation='less than or equal')) or (@datatype='ios_version' and (not(@operation) or @operation='equals' or @operation='not equal' or @operation='greater than' or @operation='greater than or equal' or @operation='less than' or @operation='less than or equal')) or (@datatype='int' and (not(@operation) or @operation='equals' or @operation='not equal' or @operation='greater than' or @operation='greater than or equal' or @operation='less than' or @operation='less than or equal' or @operation='bitwise and' or @operation='bitwise or')) or (@datatype='string' and (not(@operation) or @operation='equals' or @operation='not equal' or @operation='pattern match')) or (@datatype='version' and (not(@operation) or @operation='equals' or @operation='not equal' or @operation='greater than' or @operation='greater than or equal' or @operation='less than' or @operation='less than or equal')))">
<sch:value-of select="../@id" /> - the supplied operation attribute for the <sch:value-of select="name()" /> entity is not valid given a datatype of '<sch:value-of select="@datatype" />'</sch:assert>
<sch:assert test="not(@var_ref) or .=''">
<sch:value-of select="../@id" /> - a var-ref has been supplied for the <sch:value-of select="name()" /> entity so no value should be provided</sch:assert>
<sch:assert test="if (@var_ref) then (if (@datatype) then (@datatype=/oval-def:oval_definitions/oval-def:variables/*[@id=$var_ref]/@datatype) else ('string' = /oval-def:oval_definitions/oval-def:variables/*[@id=$var_ref]/@datatype)) else (1=1)">
<sch:value-of select="$var_ref" /> - inconsistent datatype between the variable and an associated var_ref</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
<xsd:simpleContent>
<xsd:extension base="xsd:anySimpleType">
<xsd:attribute name="datatype" type="oval:DatatypeEnumeration" use="optional" default="string" />
<xsd:attribute name="operation" type="oval:OperationEnumeration" use="optional" default="equals" />
<xsd:attribute name="mask" type="xsd:boolean" use="optional" default="false" />
<xsd:attribute name="var_ref" type="oval:VariableIDPattern" use="optional" />
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
|

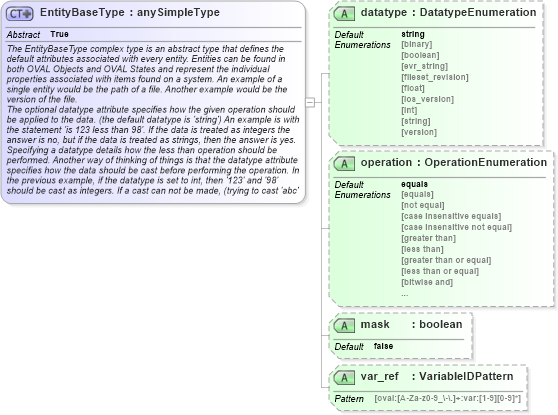

XSD Schema Diagram:
