Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: EntityObjectVariableRefType
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Type: oval-def:EntityObjectStringType
Containing Schema: independent-definitions-schema.xsd
Abstract
Documentation:
The EntityObjectVariableRefType complex type defines a string object entity that has a valid OVAL variable id as the value. The empty string is also allowed to support empty emlement associated with variable references.

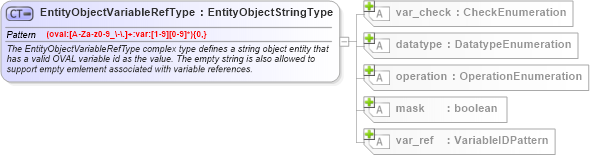

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsdXSD Diagram of EntityObjectVariableRefType in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="EntityObjectVariableRefType">
    <xsd:annotation>
        <xsd:documentation>The EntityObjectVariableRefType complex type defines a string object entity that has a valid OVAL variable id as the value. The empty string is also allowed to support empty emlement associated with variable references.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:restriction base="oval-def:EntityObjectStringType">
            <xsd:pattern value="(oval:[A-Za-z0-9_\-\.]+:var:[1-9][0-9]*){0,}" />
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
var_check oval-def:var_check all Optional
Collapse Facets:
Facet Value
Pattern (oval:[A-Za-z0-9_\-\.]+:var:[1-9][0-9]*){0,}
Collapse Derivation Tree:
Collapse References:
ind-def:var_ref
