Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: result
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Type: oval-def:EntityStateAnyType
Containing Schema: independent-definitions-schema.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The result entity specifies how to test objects in the result set of the specified SQL statement. Only one comparable field is allowed. So if the SQL statement look like 'SELECT name FROM ...', then a result entity with a value of 'Fred' would test the set of 'name' values returned by the SQL statement against the value 'Fred'.
Collapse XSD Schema Diagram:

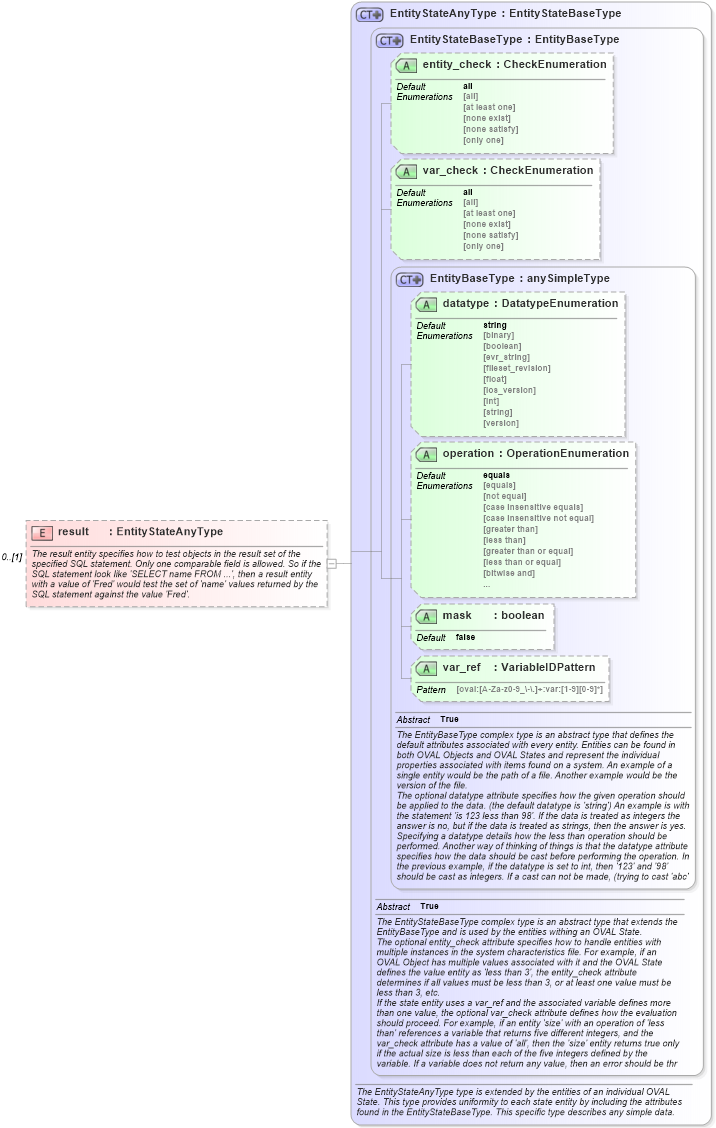

Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into EntityBaseType in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsd Drilldown into EntityStateBaseType in schema oval-definitions-schema_xsd Drilldown into EntityStateAnyType in schema oval-definitions-schema_xsdXSD Diagram of result in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="result" type="oval-def:EntityStateAnyType" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>The result entity specifies how to test objects in the result set of the specified SQL statement. Only one comparable field is allowed. So if the SQL statement look like 'SELECT name FROM ...', then a result entity with a value of 'Fred' would test the set of 'name' values returned by the SQL statement against the value 'Fred'.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="sqlsteresult" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="ind-def:sql_state/ind-def:result">
                    <sch:assert test="(@datatype='int' and (floor(.) = number(.))) or not(@datatype='int') or not(node())">
                        <sch:value-of select="../@id" /> - The datatype has been set to 'int' but the value is not an integer.</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
