Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: installation_status
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#aix
Type: aix-def:EntityStateFixInstallationStatusType
Containing Schema: aix-definitions-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The installation status of files associated with the APAR. This cannot be got from the output of the instfix command directly. The last line of the output is 'All filesets for XXXXXXX were found', or 'Not all filesets for XXXXXXX were found' or 'No filesets which have fixes for XXXXXXX are currently installed.'. These can be translated to the correct value as defined by the EntityStateFixInstallationStatusType.

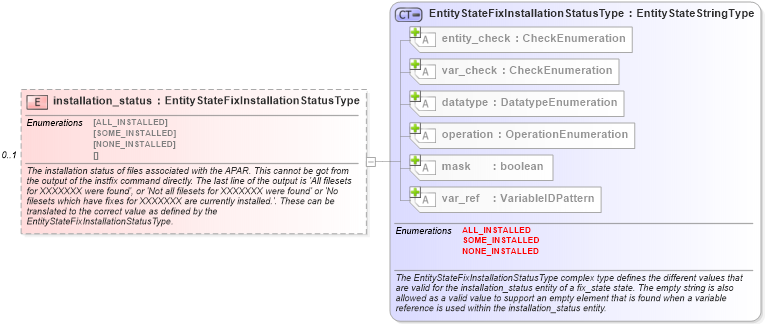

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsd Drilldown into EntityStateFixInstallationStatusType in schema aix-definitions-schema_xsdXSD Diagram of installation_status in schema aix-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="installation_status" type="aix-def:EntityStateFixInstallationStatusType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The installation status of files associated with the APAR. This cannot be got from the output of the instfix command directly. The last line of the output is 'All filesets for XXXXXXX were found', or 'Not all filesets for XXXXXXX were found' or 'No filesets which have fixes for XXXXXXX are currently installed.'. These can be translated to the correct value as defined by the EntityStateFixInstallationStatusType.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="fixsteinstallation_status" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="aix-def:fix_state/aix-def:installation_status">
                    <sch:assert test="not(@datatype) or @datatype='string'">
                        <sch:value-of select="../@id" /> - datatype attribute for the installation_status entity of a fix_state should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
