Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: EntityStateFixInstallationStatusType
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#aix
Type: oval-def:EntityStateStringType
Containing Schema: aix-definitions-schema.xsd
Abstract
Documentation:
The EntityStateFixInstallationStatusType complex type defines the different values that are valid for the installation_status entity of a fix_state state. The empty string is also allowed as a valid value to support an empty element that is found when a variable reference is used within the installation_status entity.

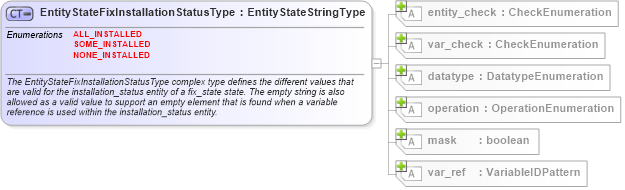

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsdXSD Diagram of EntityStateFixInstallationStatusType in schema aix-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="EntityStateFixInstallationStatusType">
    <xsd:annotation>
        <xsd:documentation>The EntityStateFixInstallationStatusType complex type defines the different values that are valid for the installation_status entity of a fix_state state. The empty string is also allowed as a valid value to support an empty element that is found when a variable reference is used within the installation_status entity.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:restriction base="oval-def:EntityStateStringType">
            <xsd:enumeration value="ALL_INSTALLED">
                <xsd:annotation>
                    <xsd:documentation>All filesets for XXXXXXX were found</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="SOME_INSTALLED">
                <xsd:annotation>
                    <xsd:documentation>Not all filesets for XXXXXXX were found</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="NONE_INSTALLED">
                <xsd:annotation>
                    <xsd:documentation>No filesets which have fixes for XXXXXXX are currently installed.</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="" />
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Facets:
Facet Value
Enumeration ALL_INSTALLED
Enumeration SOME_INSTALLED
Enumeration NONE_INSTALLED
Enumeration
Collapse Derivation Tree:
Collapse References:
aix-def:installation_status
