Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: EntityStateTrainIdentifierType
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#ios
Type: oval-def:EntityStateStringType
Containing Schema: ios-definitions-schema.xsd
Abstract
Documentation:
The EntityStateTrainIdentifierType complex type restricts a string value to a specific set of values. These values describe the possible types of trains in a Cisco IOS release. The empty string is also allowed to support empty emlement associated with variable references.

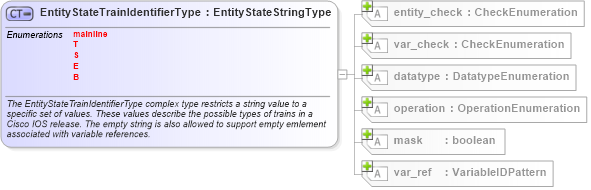

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsdXSD Diagram of EntityStateTrainIdentifierType in schema ios-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="EntityStateTrainIdentifierType">
    <xsd:annotation>
        <xsd:documentation>The EntityStateTrainIdentifierType complex type restricts a string value to a specific set of values. These values describe the possible types of trains in a Cisco IOS release. The empty string is also allowed to support empty emlement associated with variable references.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:restriction base="oval-def:EntityStateStringType">
            <xsd:enumeration value="mainline">
                <xsd:annotation>
                    <xsd:documentation>The mainline Train consolidates releases and fixes defects. Inherits features from the parent T train, and does not add additional features.</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="T">
                <xsd:annotation>
                    <xsd:documentation>Introduces new features and fixes defects. </xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="S">
                <xsd:annotation>
                    <xsd:documentation>Consolidates 12.1E, 12.2 mainline, and 12.0S, which supports high-end backbone routing, and fixes defects. </xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="E">
                <xsd:annotation>
                    <xsd:documentation>Targets enterprise core and SP edge, supports advanced QoS, voice, security, and firewall, and fixes defects.</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="B">
                <xsd:annotation>
                    <xsd:documentation>Supports broadband features and fixes defects.</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="" />
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Facets:
Facet Value
Enumeration mainline
Enumeration T
Enumeration S
Enumeration E
Enumeration B
Enumeration
Collapse Derivation Tree:
Collapse References:
ios-def:train_identifier
