Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: pattern
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Type: oval-def:EntityObjectStringType
Containing Schema: independent-definitions-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
The pattern entity defines a chunk of text in a file and is represented using a regular expression. A subexpression (using parentheses) can call out a piece of the text block to test. For example, the pattern abc(.*)xyz would look for a block of text in the file that starts with abc and ends with xyz, with the subexpression being all the characters that exist inbetween. The value of the subexpression can then be tested using the subexpression entity of a textfilecontent54_state. Note that if the pattern, starting at the same point in the file, matches more than one block of text, then it matches the longest. For example, given a file with abcdefxyzxyzabc, then the pattern abc(.*)xyz would match the block abcdefxyzxyz. Subexpressions also match the longest possible substrings, subject to the constraint that the whole match be as long as possible, with subexpressions starting earlier in the pattern taking priority over ones starting later.
Collapse XSD Schema Diagram:

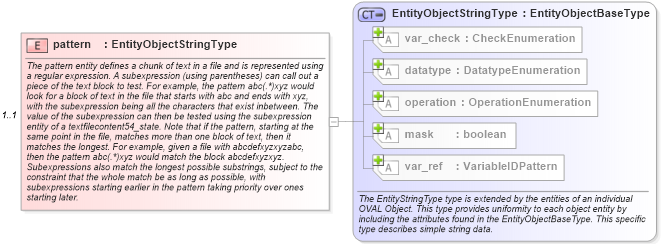

Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into EntityObjectStringType in schema oval-definitions-schema_xsdXSD Diagram of pattern in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="pattern" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The pattern entity defines a chunk of text in a file and is represented using a regular expression. A subexpression (using parentheses) can call out a piece of the text block to test. For example, the pattern abc(.*)xyz would look for a block of text in the file that starts with abc and ends with xyz, with the subexpression being all the characters that exist inbetween. The value of the subexpression can then be tested using the subexpression entity of a textfilecontent54_state. Note that if the pattern, starting at the same point in the file, matches more than one block of text, then it matches the longest. For example, given a file with abcdefxyzxyzabc, then the pattern abc(.*)xyz would match the block abcdefxyzxyz. Subexpressions also match the longest possible substrings, subject to the constraint that the whole match be as long as possible, with subexpressions starting earlier in the pattern taking priority over ones starting later.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="txt54objpattern" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="ind-def:textfilecontent54_object/ind-def:pattern">
                    <sch:assert test="not(@datatype) or @datatype='string'">
                        <sch:value-of select="../@id" /> - datatype attribute for the pattern entity of a textfilecontent54_object should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
