Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: EntityStateBinaryType
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5
Type: oval-def:EntityStateBaseType
Containing Schema: oval-definitions-schema.xsd
Abstract
Documentation:
The EntityStateBinaryType type is extended by the entities of an individual OVAL State. This type provides uniformity to each state entity by including the attributes found in the EntityStateBaseType. This specific type describes simple binary data. The empty string is also allowed when using a variable reference with an element.

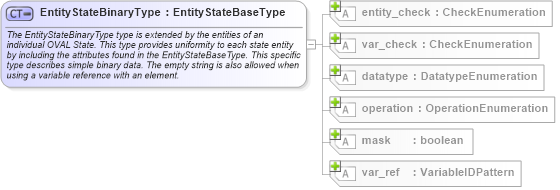

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsdXSD Diagram of EntityStateBinaryType in schema oval-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="EntityStateBinaryType">
    <xsd:annotation>
        <xsd:documentation>The EntityStateBinaryType type is extended by the entities of an individual OVAL State. This type provides uniformity to each state entity by including the attributes found in the EntityStateBaseType. This specific type describes simple binary data. The empty string is also allowed when using a variable reference with an element.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:restriction base="oval-def:EntityStateBaseType">
            <xsd:simpleType>
                <xsd:union memberTypes="xsd:hexBinary oval:EmptyStringType" />
            </xsd:simpleType>
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
