Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: type
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: win-def:EntityStateRegistryTypeType
Containing Schema: windows-definitions-schema.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The type entity allows a test to be written against the registy type associated with the specified registry key(s). Please refer to the documentation on the EntityStateRegistryTypeType for more information about the different valid individual types.

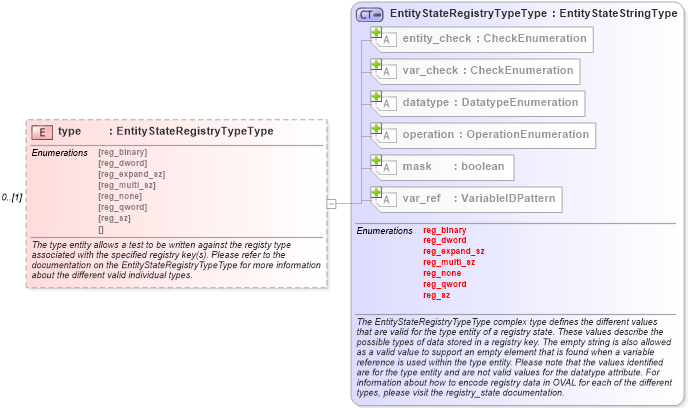

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsd Drilldown into EntityStateRegistryTypeType in schema windows-definitions-schema_xsdXSD Diagram of type in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="type" type="win-def:EntityStateRegistryTypeType" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>The type entity allows a test to be written against the registy type associated with the specified registry key(s). Please refer to the documentation on the EntityStateRegistryTypeType for more information about the different valid individual types.</xsd:documentation>
        <xsd:appinfo>
            <valid_datatypes>string</valid_datatypes>
            <valid_operators>equals, not equal</valid_operators>
            <sch:pattern id="regstetype" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-def:registry_state/win-def:type">
                    <sch:assert test="not(@datatype) or @datatype='string'">
                        <sch:value-of select="../@id" /> - datatype attribute for the type entity of a registry_state should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
