Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: fmri
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#solaris
Type: oval-def:EntityObjectStringType
Containing Schema: solaris-definitions-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
The FMRI (Fault Managed Resource Identifier) entity is used to identify system objects for which advanced fault and resource management capabilities are provided. Services managed by SMF are assigned FMRI URIs prefixed with the scheme name "svc". FMRIs used by SMF can be expressed in three ways: first as an absolute path including a location path such as "localhost" (eg svc://localhost/system/system-log:default), second as a path relative to the local machine (eg svc:/system/system-log:default), and third as simply the service identifier with the string prefixes implied (eg system/system-log:default). For OVAL, the absolute path version (first choice) should be used.

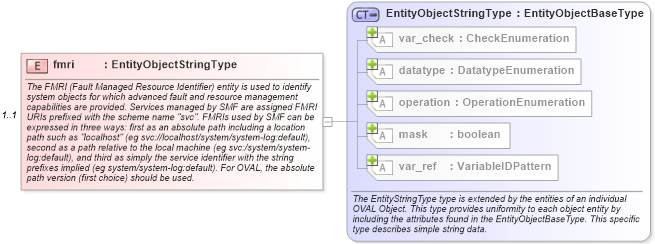

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into EntityObjectStringType in schema oval-definitions-schema_xsdXSD Diagram of fmri in schema solaris-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="fmri" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The FMRI (Fault Managed Resource Identifier) entity is used to identify system objects for which advanced fault and resource management capabilities are provided. Services managed by SMF are assigned FMRI URIs prefixed with the scheme name "svc". FMRIs used by SMF can be expressed in three ways: first as an absolute path including a location path such as "localhost" (eg svc://localhost/system/system-log:default), second as a path relative to the local machine (eg svc:/system/system-log:default), and third as simply the service identifier with the string prefixes implied (eg system/system-log:default). For OVAL, the absolute path version (first choice) should be used.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="fmriobjbase" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="sol-def:smf_object/sol-def:fmri">
                    <sch:assert test="not(@datatype) or @datatype='string'">
                        <sch:value-of select="../@id" /> - datatype attribute for the fmri entity of a smf_object should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
