Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: id
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: oval-def:EntityObjectIntType
Containing Schema: windows-definitions-schema.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The id element specifies a particular object under the metabase key. If the nillable attribute is set to true, then the object being specified is the higher level key. In this case, the id element should not be collected or used in analysis. Setting nil equal to true is different than using a .* pattern match, says to collect every id under a given key. The most likely use for xsi:nil within a metabase object is when checking for the existance of a particular key, without regards to the different ids associated with it.

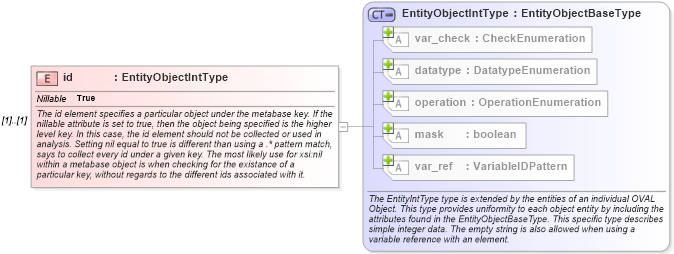

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into EntityObjectIntType in schema oval-definitions-schema_xsdXSD Diagram of id in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="id" type="oval-def:EntityObjectIntType" nillable="true">
    <xsd:annotation>
        <xsd:documentation>The id element specifies a particular object under the metabase key. If the nillable attribute is set to true, then the object being specified is the higher level key. In this case, the id element should not be collected or used in analysis. Setting nil equal to true is different than using a .* pattern match, says to collect every id under a given key. The most likely use for xsi:nil within a metabase object is when checking for the existance of a particular key, without regards to the different ids associated with it.</xsd:documentation>
        <xsd:appinfo>
            <valid_datatypes>integer</valid_datatypes>
            <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
            <sch:pattern id="metabaseobjid" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-def:metabase_object/win-def:id">
                    <sch:assert test="@datatype='int'">
                        <sch:value-of select="../@id" /> - datatype attribute for the id entity of a metabase_object should be 'int'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
