Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: instance
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Type: oval-def:EntityObjectIntType
Containing Schema: independent-definitions-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
The instance entity calls out a specific match of the pattern. Note that the main purpose of this entity is too provide uniqueness for different textfilecontent_items that results from multiple matches of a given pattern against the same file. Most likely this entity will be defined as greater than 1 which would result in the object representing the set of all matches of the pattern.

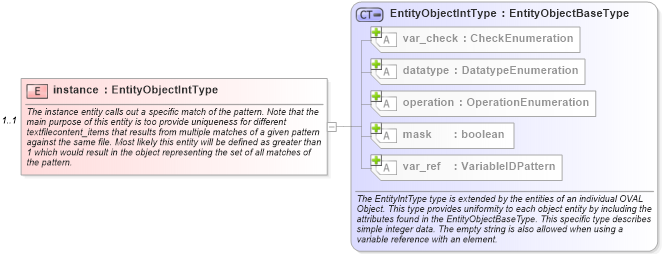

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into EntityObjectIntType in schema oval-definitions-schema_xsdXSD Diagram of instance in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="instance" type="oval-def:EntityObjectIntType" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The instance entity calls out a specific match of the pattern. Note that the main purpose of this entity is too provide uniqueness for different textfilecontent_items that results from multiple matches of a given pattern against the same file. Most likely this entity will be defined as greater than 1 which would result in the object representing the set of all matches of the pattern.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="txt54objinstance" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="ind-def:textfilecontent54_object/ind-def:instance">
                    <sch:assert test="@datatype='int'">
                        <sch:value-of select="../@id" /> - datatype attribute for the instance entity of a textfilecontent54_object should be 'int'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
