Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: EntityStateInterfaceTypeType
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: oval-def:EntityStateStringType
Containing Schema: windows-definitions-schema.xsd
Abstract
Documentation:
The EntityStateInterfaceTypeType complex type restricts a string value to a specific set of values. These values describe the different interface types. The empty string is also allowed to support empty emlement associated with variable references.

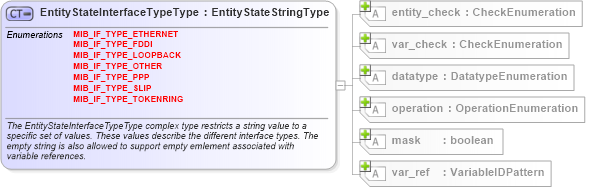

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsdXSD Diagram of EntityStateInterfaceTypeType in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="EntityStateInterfaceTypeType">
    <xsd:annotation>
        <xsd:documentation>The EntityStateInterfaceTypeType complex type restricts a string value to a specific set of values. These values describe the different interface types. The empty string is also allowed to support empty emlement associated with variable references.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:restriction base="oval-def:EntityStateStringType">
            <xsd:enumeration value="MIB_IF_TYPE_ETHERNET" />
            <xsd:enumeration value="MIB_IF_TYPE_FDDI" />
            <xsd:enumeration value="MIB_IF_TYPE_LOOPBACK" />
            <xsd:enumeration value="MIB_IF_TYPE_OTHER" />
            <xsd:enumeration value="MIB_IF_TYPE_PPP" />
            <xsd:enumeration value="MIB_IF_TYPE_SLIP" />
            <xsd:enumeration value="MIB_IF_TYPE_TOKENRING" />
            <xsd:enumeration value="" />
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Facets:
Facet Value
Enumeration MIB_IF_TYPE_ETHERNET
Enumeration MIB_IF_TYPE_FDDI
Enumeration MIB_IF_TYPE_LOOPBACK
Enumeration MIB_IF_TYPE_OTHER
Enumeration MIB_IF_TYPE_PPP
Enumeration MIB_IF_TYPE_SLIP
Enumeration MIB_IF_TYPE_TOKENRING
Enumeration
Collapse Derivation Tree:
Collapse References:
win-def:type
