Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: filename
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Type: oval-def:EntityObjectStringType
Containing Schema: independent-definitions-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
The filename element specifies the name of the file. If the nillable attribute is set to true, then the object being specified is the higher level path. In this case, the filename element should not be collected or used in analysis. Setting nil equal to true is different than using a .* pattern match, says to collect every file under a given path.

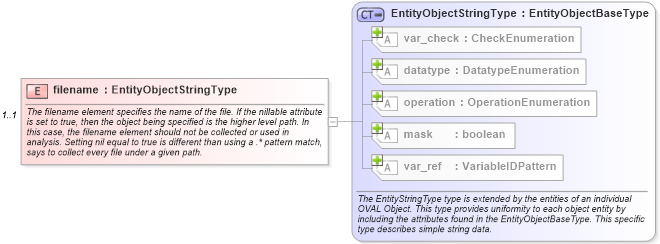

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into EntityObjectStringType in schema oval-definitions-schema_xsdXSD Diagram of filename in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="filename" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The filename element specifies the name of the file. If the nillable attribute is set to true, then the object being specified is the higher level path. In this case, the filename element should not be collected or used in analysis. Setting nil equal to true is different than using a .* pattern match, says to collect every file under a given path.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="md5objfilename" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="ind-def:filemd5_object/ind-def:filename">
                    <sch:assert test="not(@datatype) or @datatype='string'">
                        <sch:value-of select="../@id" /> - datatype attribute for the filename entity of a filemd5_object should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
