Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: engine
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Type: ind-def:EntityObjectEngineType
Containing Schema: independent-definitions-schema.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The engine entity defines the specific database engine to use. Any tool looking to collect information about this object will need to know the engine in order to use the appropriate drivers to establish a connection.

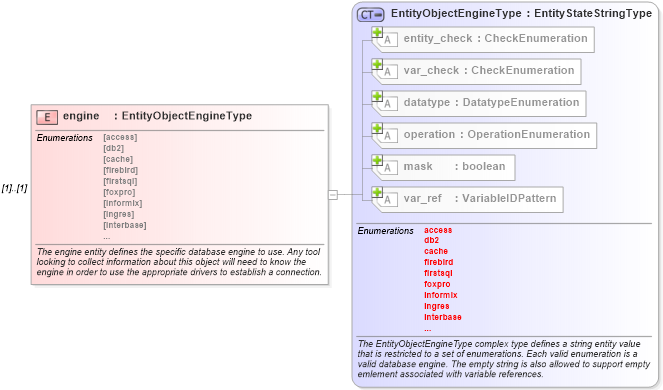

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsd Drilldown into EntityObjectEngineType in schema independent-definitions-schema_xsdXSD Diagram of engine in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="engine" type="ind-def:EntityObjectEngineType">
    <xsd:annotation>
        <xsd:documentation>The engine entity defines the specific database engine to use. Any tool looking to collect information about this object will need to know the engine in order to use the appropriate drivers to establish a connection.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="sqlobjdengine" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="ind-def:sql_object/ind-def:engine">
                    <sch:assert test="not(@datatype) or @datatype='string'">
                        <sch:value-of select="../@id" /> - datatype attribute for the engine entity of an sql_object should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
