Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: group
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: oval-def:EntityStateStringType
Containing Schema: windows-definitions-schema.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
A string the represents the SID of a particular group. The group_sid element can be included multiple times in a system characteristic item in order to record that a user can be a member of a number of different groups. Note that the entity_check attribute associated with EntityStateStringType guides the evaluation of entities like group that refer to items that can occur an unbounded number of times.

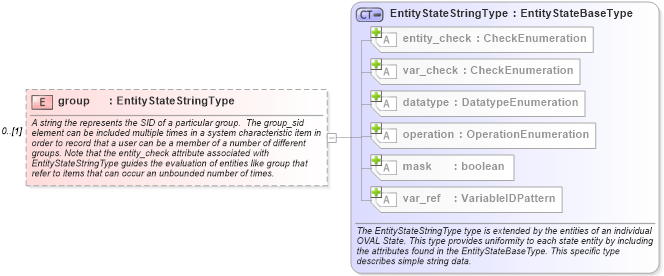

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsd Drilldown into EntityStateStringType in schema oval-definitions-schema_xsdXSD Diagram of group in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="group" type="oval-def:EntityStateStringType" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>A string the represents the SID of a particular group.  The group_sid element can be included multiple times in a system characteristic item in order to record that a user can be a member of a number of different groups. Note that the entity_check attribute associated with EntityStateStringType guides the evaluation of entities like group that refer to items that can occur an unbounded number of times.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="usersidstegroup" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-def:user_sid_state/win-def:group_sid">
                    <sch:assert test="not(@datatype) or @datatype='string'">
                        <sch:value-of select="../@id" /> - datatype attribute for the group_sid entity of a user_sid_state should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
