Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: type
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: win-def:EntityStateFileTypeType
Containing Schema: windows-definitions-schema.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The type element marks whether the file is a directory, named pipe, standard file, etc. These types are the return values for GetFileType, with the exception of FILE_ATTRIBUTE_DIRECTORY which is obtained by looking at GetFileAttributesEx. NOTE: Should this entity be split into two in future versions of the language as there are other values associated with GetFileAttributesEx that are not represented here?

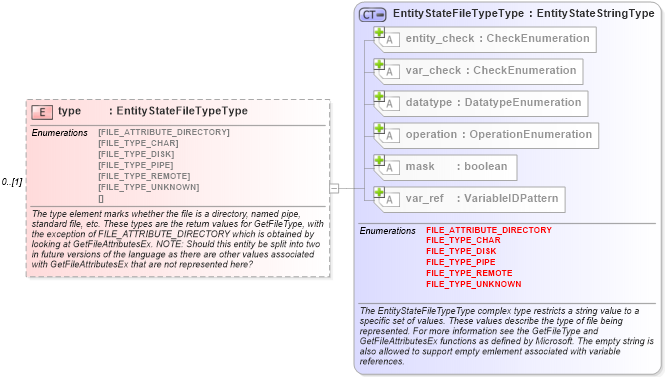

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsd Drilldown into EntityStateFileTypeType in schema windows-definitions-schema_xsdXSD Diagram of type in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="type" type="win-def:EntityStateFileTypeType" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>The type element marks whether the file is a directory, named pipe, standard file, etc. These types are the return values for GetFileType, with the exception of FILE_ATTRIBUTE_DIRECTORY which is obtained by looking at GetFileAttributesEx. NOTE: Should this entity be split into two in future versions of the language as there are other values associated with GetFileAttributesEx that are not represented here?</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="filestetype" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-def:file_state/win-def:type">
                    <sch:assert test="not(@datatype) or @datatype='string'">
                        <sch:value-of select="../@id" /> - datatype attribute for the type entity of a file_state should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
