Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: EntityStateAddrTypeType
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: oval-def:EntityStateStringType
Containing Schema: windows-definitions-schema.xsd
Abstract
Documentation:
The EntityStateAddrTypeType complex type restricts a string value to a specific set of values that describe address types associated with an interface. The empty string is also allowed to support empty emlement associated with variable references.

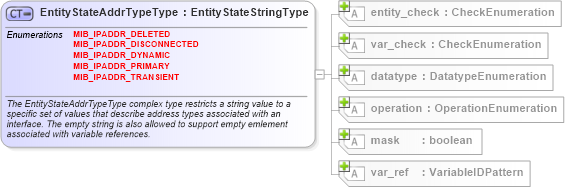

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into entity_check in schema oval-definitions-schema_xsdXSD Diagram of EntityStateAddrTypeType in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="EntityStateAddrTypeType">
    <xsd:annotation>
        <xsd:documentation>The EntityStateAddrTypeType complex type restricts a string value to a specific set of values that describe address types associated with an interface. The empty string is also allowed to support empty emlement associated with variable references.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:restriction base="oval-def:EntityStateStringType">
            <xsd:enumeration value="MIB_IPADDR_DELETED">
                <xsd:annotation>
                    <xsd:documentation>The address is being deleted.</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="MIB_IPADDR_DISCONNECTED">
                <xsd:annotation>
                    <xsd:documentation>The address is on disconnected interface.</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="MIB_IPADDR_DYNAMIC">
                <xsd:annotation>
                    <xsd:documentation>The stated address is a dynamic IP address.</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="MIB_IPADDR_PRIMARY">
                <xsd:annotation>
                    <xsd:documentation>The stated address is a primary IP address.</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="MIB_IPADDR_TRANSIENT">
                <xsd:annotation>
                    <xsd:documentation>The stated address is a transient address.</xsd:documentation>
                </xsd:annotation>
            </xsd:enumeration>
            <xsd:enumeration value="" />
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
entity_check oval-def:entity_check all Optional
var_check oval-def:var_check all Optional
Collapse Facets:
Facet Value
Enumeration MIB_IPADDR_DELETED
Enumeration MIB_IPADDR_DISCONNECTED
Enumeration MIB_IPADDR_DYNAMIC
Enumeration MIB_IPADDR_PRIMARY
Enumeration MIB_IPADDR_TRANSIENT
Enumeration
Collapse Derivation Tree:
Collapse References:
win-def:addr_type
