Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: protocol
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#linux
Type: oval-def:EntityObjectStringType
Containing Schema: linux-definitions-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
The protocol entity defines a certain transport-layer protocol, in lowercase: tcp or udp.

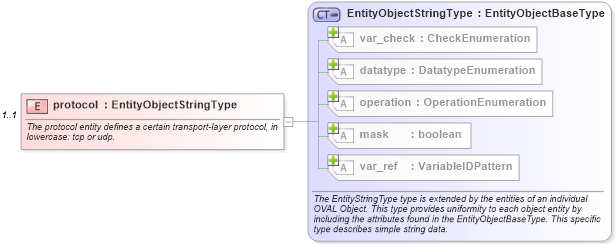

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-definitions-schema_xsd Drilldown into mask in schema oval-definitions-schema_xsd Drilldown into operation in schema oval-definitions-schema_xsd Drilldown into datatype in schema oval-definitions-schema_xsd Drilldown into var_check in schema oval-definitions-schema_xsd Drilldown into EntityObjectStringType in schema oval-definitions-schema_xsdXSD Diagram of protocol in schema linux-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="protocol" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The protocol entity defines a certain transport-layer protocol, in lowercase: tcp or udp.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="ilsobjprotocol" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="linux-def:inetlisteningservers_object/linux-def:protocol">
                    <sch:assert test="not(@datatype) or @datatype='string'">
                        <sch:value-of select="../@id" /> - datatype attribute for the protocol entity of an inetlisteningservers_object should be 'string'</sch:assert>
                    <sch:assert test="not(@operation) or @operation='equals' or @operation='not equal' or @operation='pattern match'">
                        <sch:value-of select="../@id" /> - operation attribute for the protocol entity of an inetlisteningservers_object should be 'equals', 'not equal', or 'pattern match'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-def:datatype string Optional
operation oval-def:operation equals Optional
mask oval-def:mask false Optional
var_ref oval-def:var_ref Optional
var_check oval-def:var_check all Optional
Collapse Derivation Tree:
