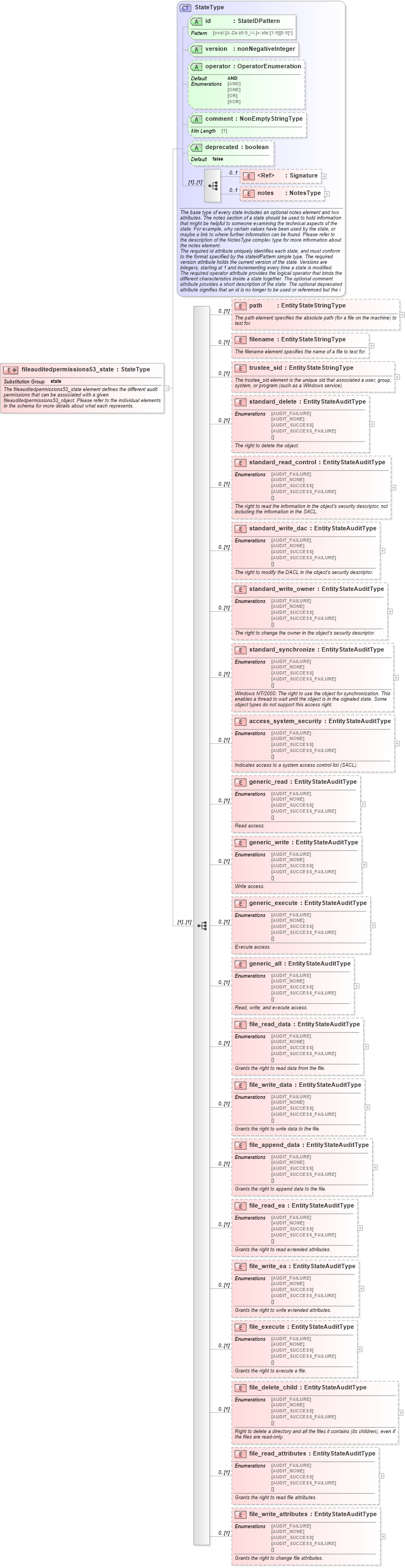

<xsd:element name="fileauditedpermissions53_state" substitutionGroup="oval-def:state">
<xsd:annotation>
<xsd:documentation>The fileauditedpermissions53_state element defines the different audit permissions that can be associated with a given fileauditedpermissions53_object. Please refer to the individual elements in the schema for more details about what each represents.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval-def:StateType">
<xsd:sequence>
<xsd:element name="path" type="oval-def:EntityStateStringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The path element specifies the absolute path (for a file on the machine) to test for.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stepath" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:path">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the path entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="filename" type="oval-def:EntityStateStringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The filename element specifies the name of a file to test for.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stefilename" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:filename">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the filename entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
<sch:assert test="if (not(@operation) or @operation='equals' or @operation='not equal') then (not(contains(.,'\') or contains(.,'/') or contains(.,':') or contains(.,'*') or contains(.,'?') or contains(.,'>') or contains(.,'|'))) else (1=1)">
<sch:value-of select="../@id" /> - filename entity can not contain the characters / \ : * ? > | </sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="trustee_sid" type="oval-def:EntityStateStringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The trustee_sid element is the unique sid that associated a user, group, system, or program (such as a Windows service).</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stetrustee_sid" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:trustee_sid">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the trustee_sid entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="standard_delete" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The right to delete the object.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stestandard_delete" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:standard_delete">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the standard_delete entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="standard_read_control" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The right to read the information in the object's security descriptor, not including the information in the SACL.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stestandard_read_control" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:standard_read_control">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the standard_read_control entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="standard_write_dac" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The right to modify the DACL in the object's security descriptor.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stestandard_write_dac" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:standard_write_dac">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the standard_write_dac entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="standard_write_owner" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The right to change the owner in the object's security descriptor.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stestandard_write_owner" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:standard_write_owner">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the standard_write_owner entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="standard_synchronize" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Windows NT/2000: The right to use the object for synchronization. This enables a thread to wait until the object is in the signaled state. Some object types do not support this access right.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stestandard_synchronize" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:standard_synchronize">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the standard_synchronize entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="access_system_security" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Indicates access to a system access control list (SACL).</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53steaccess_system_security" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:access_system_security">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the access_system_security entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="generic_read" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Read access.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stegeneric_read" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:generic_read">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the generic_read entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="generic_write" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Write access.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stegeneric_write" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:generic_write">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the generic_write entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="generic_execute" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Execute access.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stegeneric_execute" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:generic_execute">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the generic_execute entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="generic_all" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Read, write, and execute access.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stegeneric_all" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:generic_all">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the generic_all entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_read_data" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Grants the right to read data from the file.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stefile_read_data" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:file_read_data">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the file_read_data entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_write_data" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Grants the right to write data to the file.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stefile_write_data" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:file_write_data">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the file_write_data entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_append_data" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Grants the right to append data to the file.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stefile_append_data" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:file_append_data">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the file_append_data entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_read_ea" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Grants the right to read extended attributes.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stefile_read_ea" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:file_read_ea">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the file_read_ea entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_write_ea" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Grants the right to write extended attributes.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stefile_write_ea" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:file_write_ea">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the file_write_ea entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_execute" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Grants the right to execute a file.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stefile_execute" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:file_execute">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the file_execute entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_delete_child" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Right to delete a directory and all the files it contains (its children), even if the files are read-only.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stefile_delete_child" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:file_delete_child">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the file_delete_child entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_read_attributes" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Grants the right to read file attributes.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stefile_read_attributes" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:file_read_attributes">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the file_read_attributes entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_write_attributes" type="win-def:EntityStateAuditType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Grants the right to change file attributes.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="fap53stefile_write_attributes" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-def:fileauditedpermissions53_state/win-def:file_write_attributes">
<sch:assert test="not(@datatype) or @datatype='string'">
<sch:value-of select="../@id" /> - datatype attribute for the file_write_attributes entity of a fileauditedpermissions53_state should be 'string'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|
XSD Schema Diagram:
