Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: filemd5_item
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#independent
Type: oval-sc:ItemType
Containing Schema: independent-system-characteristics-schema.xsd
Abstract
Documentation:
This element stores md5 hash associated with a specific file. This item has been deprecated. You should use the filehash_item instead. This item will be dropped in the major release of OVAL.

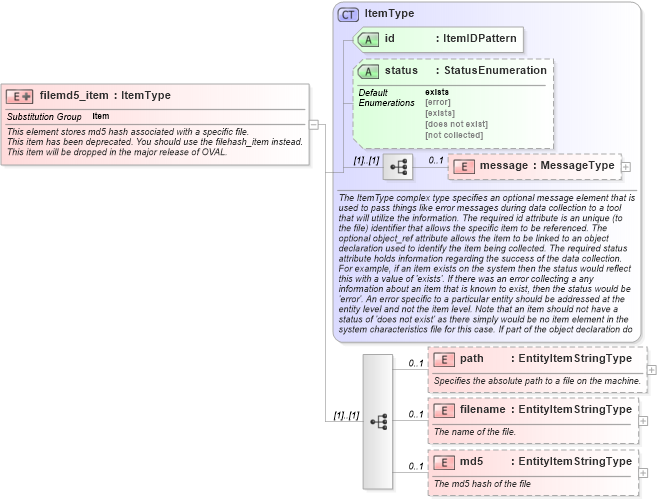

Collapse XSD Schema Diagram:
Drilldown into md5 in schema independent-system-characteristics-schema_xsd Drilldown into filename in schema independent-system-characteristics-schema_xsd Drilldown into path in schema independent-system-characteristics-schema_xsd Drilldown into message in schema oval-system-characteristics-schema_xsd Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into id in schema oval-system-characteristics-schema_xsd Drilldown into ItemType in schema oval-system-characteristics-schema_xsdXSD Diagram of filemd5_item in schema independent-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="filemd5_item" substitutionGroup="oval-sc:item">
    <xsd:annotation>
        <xsd:documentation>This element stores md5 hash associated with a specific file.</xsd:documentation>
        <xsd:documentation>This item has been deprecated. You should use the filehash_item instead. This item will be dropped in the major release of OVAL.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-sc:ItemType">
                <xsd:sequence>
                    <xsd:element name="path" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Specifies the absolute path to a file on the machine.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="md5itempath" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="ind-sc:filemd5_item/ind-sc:path">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the path entity of a filemd5_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="filename" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The name of the file.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="md5itemfilename" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="ind-sc:filemd5_item/ind-sc:filename">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the filename entity of a filemd5_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="md5" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The md5 hash of the file</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="md5itemmd5" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="ind-sc:filemd5_item/ind-sc:md5">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the md5 entity of a filemd5_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
message oval-sc:message 0 1
path ind-sc:path 0 1
filename ind-sc:filename 0 1
md5 ind-sc:md5 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-sc:id Required
status oval-sc:status exists Optional
Collapse Derivation Tree:
Collapse References:
oval-sc:item
