Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: filemd5_state
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Type: oval-def:StateType
Containing Schema: independent-definitions-schema.xsd
Abstract
Documentation:
The filemd5_state element contains entities that are used to check the file path, name, and the md5 associated with a specific file.

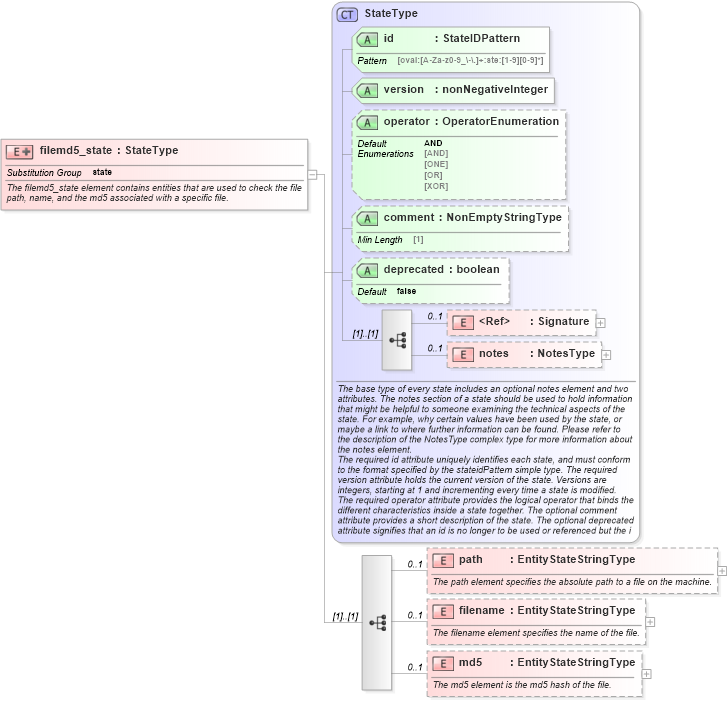

Collapse XSD Schema Diagram:
Drilldown into md5 in schema independent-definitions-schema_xsd Drilldown into filename in schema independent-definitions-schema_xsd Drilldown into path in schema independent-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into operator in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into StateType in schema oval-definitions-schema_xsdXSD Diagram of filemd5_state in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="filemd5_state" substitutionGroup="oval-def:state">
    <xsd:annotation>
        <xsd:documentation>The filemd5_state element contains entities that are used to check the file path, name, and the md5 associated with a specific file.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:StateType">
                <xsd:sequence>
                    <xsd:element name="path" type="oval-def:EntityStateStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The path element specifies the absolute path to a file on the machine.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="md5stepath" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="ind-def:filemd5_state/ind-def:path">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the path entity of a filemd5_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="filename" type="oval-def:EntityStateStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The filename element specifies the name of the file.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="md5stefilename" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="ind-def:filemd5_state/ind-def:filename">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the filename entity of a filemd5_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="md5" type="oval-def:EntityStateStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The md5 element is the md5 hash of the file.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="md5stemd5" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="ind-def:filemd5_state/ind-def:md5">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the md5 entity of a filemd5_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
path ind-def:path 0 1
filename ind-def:filename 0 1
md5 ind-def:md5 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
operator oval-def:operator AND Optional
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:state
