Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: filemd5_test
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Type: oval-def:TestType
Containing Schema: independent-definitions-schema.xsd
Abstract
Documentation:
The file md5 test is used to check the md5 associated with a specified file. It extends the standard TestType as defined in the oval-definitions-schema and one should refer to the TestType description for more information. The required object element references a filemd5_object and the optional state element specifies the md5 to check. The evaluation of the test is guided by the check attribute that is inherited from the TestType. This test has been deprecated. You should use the filehash_test instead. This test will be dropped in the major release of OVAL.

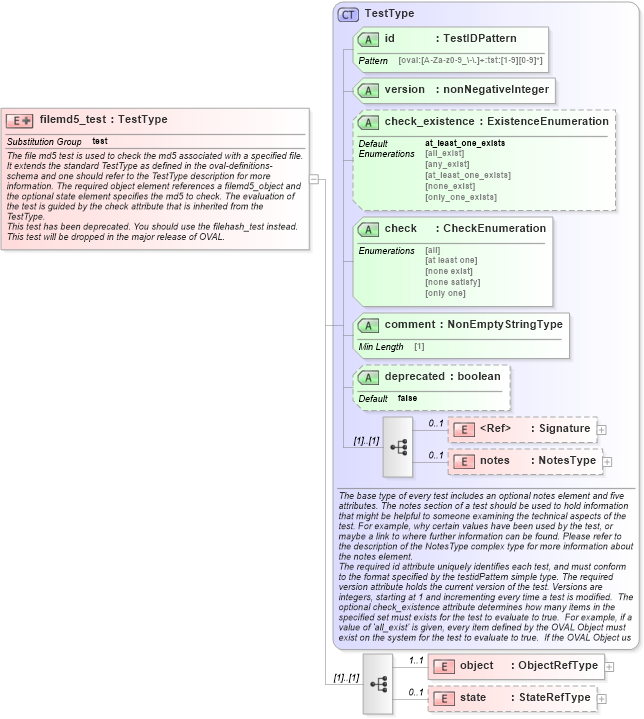

Collapse XSD Schema Diagram:
Drilldown into state in schema independent-definitions-schema_xsd Drilldown into object in schema independent-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into check in schema oval-definitions-schema_xsd Drilldown into check_existence in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into TestType in schema oval-definitions-schema_xsdXSD Diagram of filemd5_test in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="filemd5_test" substitutionGroup="oval-def:test">
    <xsd:annotation>
        <xsd:documentation>The file md5 test is used to check the md5 associated with a specified file. It extends the standard TestType as defined in the oval-definitions-schema and one should refer to the TestType description for more information. The required object element references a filemd5_object and the optional state element specifies the md5 to check. The evaluation of the test is guided by the check attribute that is inherited from the TestType.</xsd:documentation>
        <xsd:documentation>This test has been deprecated. You should use the filehash_test instead. This test will be dropped in the major release of OVAL.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="md5tst" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="ind-def:filemd5_test/ind-def:object">
                    <sch:assert test="@object_ref=/oval-def:oval_definitions/oval-def:objects/ind-def:filemd5_object/@id">
                        <sch:value-of select="../@id" /> - the object child element of a filemd5_test must reference a filemd5_object</sch:assert>
                </sch:rule>
                <sch:rule context="ind-def:filemd5_test/ind-def:state">
                    <sch:assert test="@state_ref=/oval-def:oval_definitions/oval-def:states/ind-def:filemd5_state/@id">
                        <sch:value-of select="../@id" /> - the state child element of a filemd5_test must reference a filemd5_state</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:TestType">
                <xsd:sequence>
                    <xsd:element name="object" type="oval-def:ObjectRefType" minOccurs="1" maxOccurs="1" />
                    <xsd:element name="state" type="oval-def:StateRefType" minOccurs="0" maxOccurs="1" />
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
object ind-def:object 1 1
state ind-def:state 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
check_existence oval-def:check_existence at_least_one_exists Optional
check oval-def:check Required
comment oval-def:comment Required
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:test
