Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: global_state
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#ios
Type: oval-def:StateType
Containing Schema: ios-definitions-schema.xsd
Abstract
Documentation:
The global_state element defines the different information that can be found in the ios config file under the global context. Please refer to the individual elements in the schema for more details about what each represents.

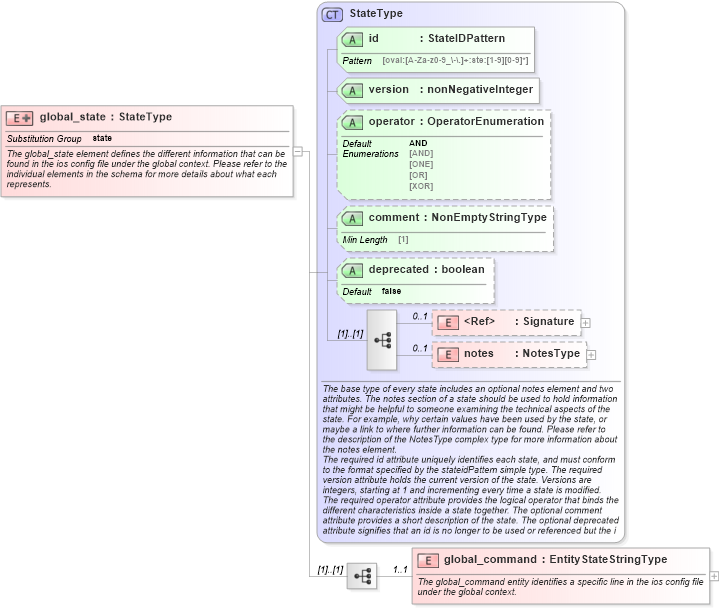

Collapse XSD Schema Diagram:
Drilldown into global_command in schema ios-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into operator in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into StateType in schema oval-definitions-schema_xsdXSD Diagram of global_state in schema ios-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="global_state" substitutionGroup="oval-def:state">
    <xsd:annotation>
        <xsd:documentation>The global_state element defines the different information that can be found in the ios config file under the global context. Please refer to the individual elements in the schema for more details about what each represents.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:StateType">
                <xsd:sequence>
                    <xsd:element name="global_command" type="oval-def:EntityStateStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The global_command entity identifies a specific line in the ios config file under the global context.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="globalsteglobal_command" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="ios-def:global_state/ios-def:global_command">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the global_command entity of a global_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
global_command ios-def:global_command 1 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
operator oval-def:operator AND Optional
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:state
