Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: group_sid_item
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:ItemType
Containing Schema: windows-system-characteristics-schema.xsd
Abstract
Documentation:
The windows group_sid_item allows the different users that belong to specific groups (identified by SID) be collected. Note that the user element can appear an unlimited number of times. If no user is found in the specified group, then a single user element should exist with a status of 'does not exist'. If there is an error determining the users of a group, then a single user element should exist with a status of 'error'.

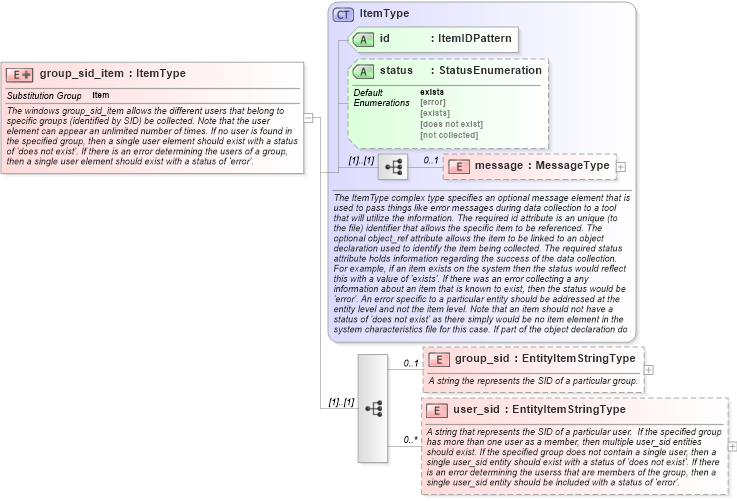

Collapse XSD Schema Diagram:
Drilldown into user_sid in schema windows-system-characteristics-schema_xsd Drilldown into group_sid in schema windows-system-characteristics-schema_xsd Drilldown into message in schema oval-system-characteristics-schema_xsd Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into id in schema oval-system-characteristics-schema_xsd Drilldown into ItemType in schema oval-system-characteristics-schema_xsdXSD Diagram of group_sid_item in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="group_sid_item" substitutionGroup="oval-sc:item">
    <xsd:annotation>
        <xsd:documentation>The windows group_sid_item allows the different users that belong to specific groups (identified by SID) be collected. Note that the user element can appear an unlimited number of times. If no user is found in the specified group, then a single user element should exist with a status of 'does not exist'. If there is an error determining the users of a group, then a single user element should exist with a status of 'error'.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-sc:ItemType">
                <xsd:sequence>
                    <xsd:element name="group_sid" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>A string the represents the SID of a particular group.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="groupsiditemgroup" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:group_sid_item/win-sc:group_sid">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the group_sid entity of a group_sid_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="user_sid" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="unbounded">
                        <xsd:annotation>
                            <xsd:documentation>A string that represents the SID of a particular user.  If the specified group has more than one user as a member, then multiple user_sid entities should exist. If the specified group does not contain a single user, then a single user_sid entity should exist with a status of 'does not exist'. If there is an error determining the userss that are members of the group, then a single user_sid entity should be included with a status of 'error'.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="groupsiditemuser" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:group_sid_item/win-sc:user_sid">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the user_sid entity of a group_sid_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
message oval-sc:message 0 1
group_sid win-sc:group_sid 0 1
user_sid win-sc:user_sid 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id oval-sc:id Required
status oval-sc:status exists Optional
Collapse Derivation Tree:
Collapse References:
oval-sc:item
