Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: httpd_item
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#apache
Type: oval-sc:ItemType
Containing Schema: apache-system-characteristics-schema.xsd
Abstract
Documentation:
The httpd item holds information about a installed Apache HTTPD binary. It extends the standard ItemType as defined in the oval-system-characteristics schema and one should refer to the ItemType description for more information.

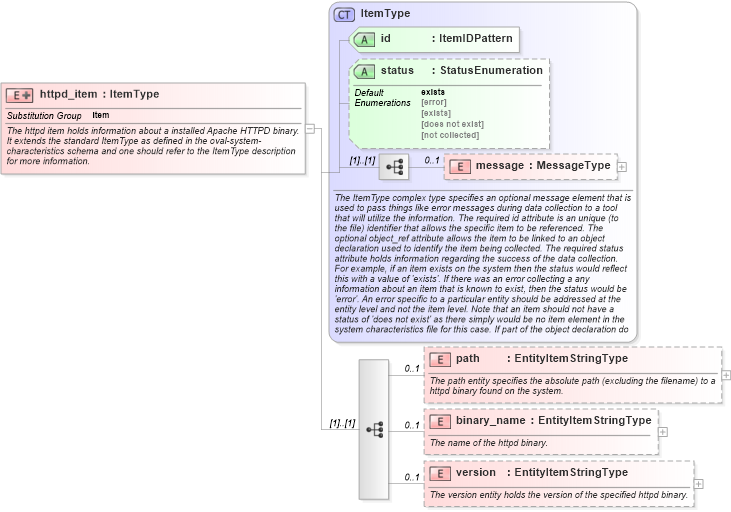

Collapse XSD Schema Diagram:
Drilldown into version in schema apache-system-characteristics-schema_xsd Drilldown into binary_name in schema apache-system-characteristics-schema_xsd Drilldown into path in schema apache-system-characteristics-schema_xsd Drilldown into message in schema oval-system-characteristics-schema_xsd Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into id in schema oval-system-characteristics-schema_xsd Drilldown into ItemType in schema oval-system-characteristics-schema_xsdXSD Diagram of httpd_item in schema apache-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="httpd_item" substitutionGroup="oval-sc:item">
    <xsd:annotation>
        <xsd:documentation>The httpd item holds information about a installed Apache HTTPD binary.  It extends the standard ItemType as defined in the oval-system-characteristics schema and one should refer to the ItemType description for more information.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-sc:ItemType">
                <xsd:sequence>
                    <xsd:element name="path" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The path entity specifies the absolute path (excluding the filename) to a httpd binary found on the system.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="httpditempath" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="apache-sc:httpd_item/apache-sc:path">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the path entity of a httpd_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="binary_name" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The name of the httpd binary.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="httpditembinaryname" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="apache-sc:httpd_item/apache-sc:binary_name">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the binary_name entity of a httpd_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="version" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The version entity holds the version of the specified httpd binary.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="httpditemversion" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="apache-sc:httpd_item/apache-sc:version">
                                        <sch:assert test="@datatype='version'">item <sch:value-of select="../@id" /> - datatype attribute for the version entity of a httpd_item should be 'version'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
message oval-sc:message 0 1
path apache-sc:path 0 1
binary_name apache-sc:binary_name 0 1
version apache-sc:version 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-sc:id Required
status oval-sc:status exists Optional
Collapse Derivation Tree:
Collapse References:
oval-sc:item
