Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: inetlisteningservers_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#linux
Type: oval-def:ObjectType
Containing Schema: linux-definitions-schema.xsd
Abstract
Documentation:
The inetlisteningservers_object element is used by an inet listening servers test to define the specific protocol-address-port to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema. An inet listening servers object consists of three entities. The first identifies a specific ip address. The second entity represents a certain port number. While the third identifies the protocol.

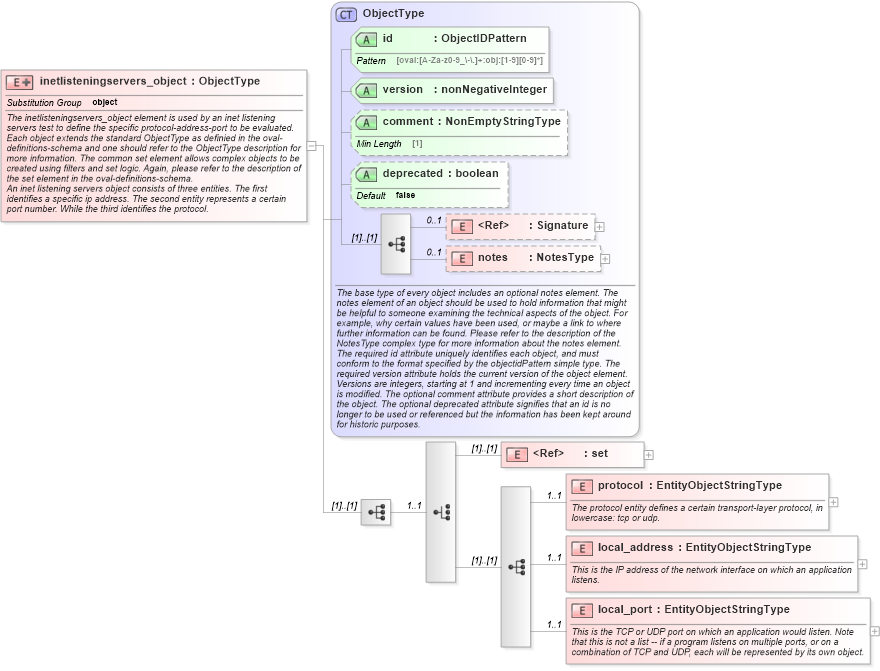

Collapse XSD Schema Diagram:
Drilldown into local_port in schema linux-definitions-schema_xsd Drilldown into local_address in schema linux-definitions-schema_xsd Drilldown into protocol in schema linux-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of inetlisteningservers_object in schema linux-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="inetlisteningservers_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The inetlisteningservers_object element is used by an inet listening servers test to define the specific protocol-address-port to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.</xsd:documentation>
        <xsd:documentation>An inet listening servers object consists of three entities. The first identifies a specific ip address. The second entity represents a certain port number. While the third identifies the protocol.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice minOccurs="1" maxOccurs="1">
                        <xsd:element ref="oval-def:set" />
                        <xsd:sequence>
                            <xsd:element name="protocol" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>The protocol entity defines a certain transport-layer protocol, in lowercase: tcp or udp.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="ilsobjprotocol" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="linux-def:inetlisteningservers_object/linux-def:protocol">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the protocol entity of an inetlisteningservers_object should be 'string'</sch:assert>
                                                <sch:assert test="not(@operation) or @operation='equals' or @operation='not equal' or @operation='pattern match'">
                                                    <sch:value-of select="../@id" /> - operation attribute for the protocol entity of an inetlisteningservers_object should be 'equals', 'not equal', or 'pattern match'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                            <xsd:element name="local_address" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>This is the IP address of the network interface on which an application listens.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="ilsobjlocal_address" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="linux-def:inetlisteningservers_object/linux-def:local_address">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the local_address entity of an inetlisteningservers_object should be 'string'</sch:assert>
                                                <sch:assert test="not(@operation) or @operation='equals' or @operation='not equal' or @operation='pattern match'">
                                                    <sch:value-of select="../@id" /> - operation attribute for the local_address entity of an inetlisteningservers_object should be 'equals', 'not equal', or 'pattern match'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                            <xsd:element name="local_port" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>This is the TCP or UDP port on which an application would listen. Note that this is not a list -- if a program listens on multiple ports, or on a combination of TCP and UDP, each will be represented by its own object.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="ilsobjlocal_port" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="linux-def:inetlisteningservers_object/linux-def:local_port">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the local_port entity of an inetlisteningservers_object should be 'string'</sch:assert>
                                                <sch:assert test="not(@operation) or @operation='equals' or @operation='not equal' or @operation='pattern match'">
                                                    <sch:value-of select="../@id" /> - operation attribute for the local_port entity of an inetlisteningservers_object should be 'equals', 'not equal', or 'pattern match'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set (1) (1)
protocol linux-def:protocol 1 1
local_address linux-def:local_address 1 1
local_port linux-def:local_port 1 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
