Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: interface_item
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:ItemType
Containing Schema: windows-system-characteristics-schema.xsd
Abstract
Documentation:
Enumerate various attributes about the interfaces on a system.

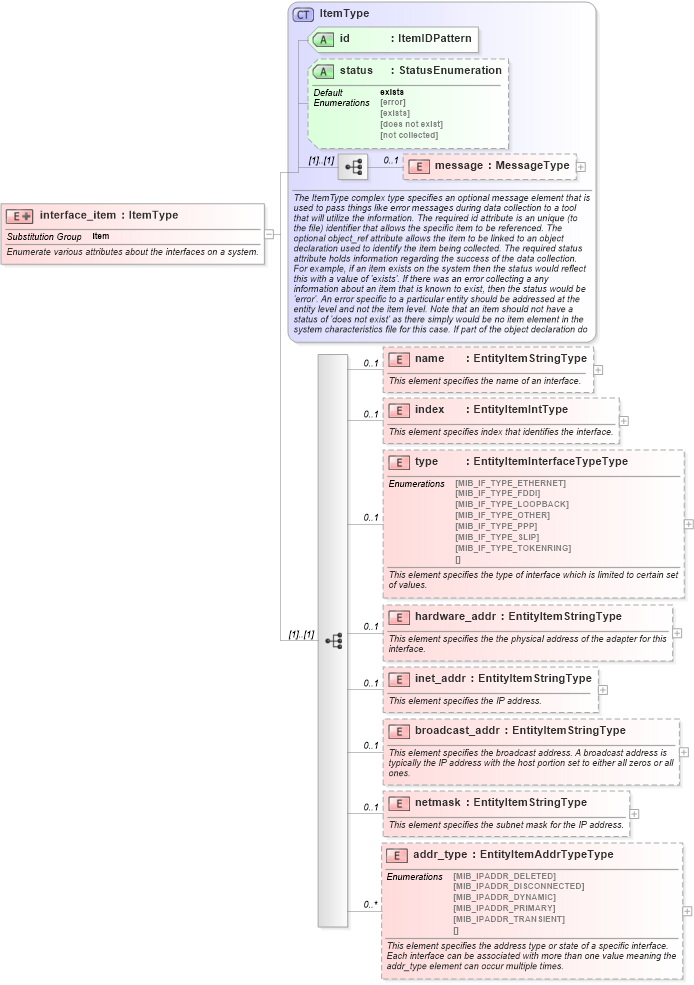

Collapse XSD Schema Diagram:
Drilldown into addr_type in schema windows-system-characteristics-schema_xsd Drilldown into netmask in schema windows-system-characteristics-schema_xsd Drilldown into broadcast_addr in schema windows-system-characteristics-schema_xsd Drilldown into inet_addr in schema windows-system-characteristics-schema_xsd Drilldown into hardware_addr in schema windows-system-characteristics-schema_xsd Drilldown into type in schema windows-system-characteristics-schema_xsd Drilldown into index in schema windows-system-characteristics-schema_xsd Drilldown into name in schema windows-system-characteristics-schema_xsd Drilldown into message in schema oval-system-characteristics-schema_xsd Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into id in schema oval-system-characteristics-schema_xsd Drilldown into ItemType in schema oval-system-characteristics-schema_xsdXSD Diagram of interface_item in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="interface_item" substitutionGroup="oval-sc:item">
    <xsd:annotation>
        <xsd:documentation>Enumerate various attributes about the interfaces on a system.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-sc:ItemType">
                <xsd:sequence>
                    <xsd:element name="name" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies the name of an interface.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfaceitemname" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:interface_item/win-sc:name">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the name entity of an interface_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="index" type="oval-sc:EntityItemIntType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies index that identifies the interface.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfaceitemindex" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:interface_item/win-sc:index">
                                        <sch:assert test="@datatype='int'">item <sch:value-of select="../@id" /> - datatype attribute for the index entity of an interface_item should be 'int'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="type" type="win-sc:EntityItemInterfaceTypeType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies the type of interface which is limited to certain set of values.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfaceitemtype" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:interface_item/win-sc:type">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the type entity of an interface_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="hardware_addr" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies the the physical address of the adapter for this interface.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfaceitemhardware_addr" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:interface_item/win-sc:hardware_addr">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the hardware_addr entity of an interface_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="inet_addr" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies the IP address.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfaceiteminet_addr" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:interface_item/win-sc:inet_addr">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the inet_addr entity of an interface_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="broadcast_addr" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies the broadcast address. A broadcast address is typically the IP address with the host portion set to either all zeros or all ones.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfaceitembroadcast_addr" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:interface_item/win-sc:broadcast_addr">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the broadcast_addr entity of an interface_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="netmask" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies the subnet mask for the IP address.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfaceitemnetmask" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:interface_item/win-sc:netmask">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the netmask entity of an interface_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="addr_type" type="win-sc:EntityItemAddrTypeType" minOccurs="0" maxOccurs="unbounded">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies the address type or state of a specific interface. Each interface can be associated with more than one value meaning the addr_type element can occur multiple times.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfaceitemaddr_type" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-sc:interface_item/win-sc:addr_type">
                                        <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the addr_type entity of an interface_item should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
message oval-sc:message 0 1
name win-sc:name 0 1
index win-sc:index 0 1
type win-sc:type 0 1
hardware_addr win-sc:hardware_addr 0 1
inet_addr win-sc:inet_addr 0 1
broadcast_addr win-sc:broadcast_addr 0 1
netmask win-sc:netmask 0 1
addr_type win-sc:addr_type 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id oval-sc:id Required
status oval-sc:status exists Optional
Collapse Derivation Tree:
Collapse References:
oval-sc:item
