Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: interface_state
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: oval-def:StateType
Containing Schema: windows-definitions-schema.xsd
Abstract
Documentation:
The interface_state element enumerates the different properties associate with a Windows interface. Please refer to the individual elements in the schema for more details about what each represents.

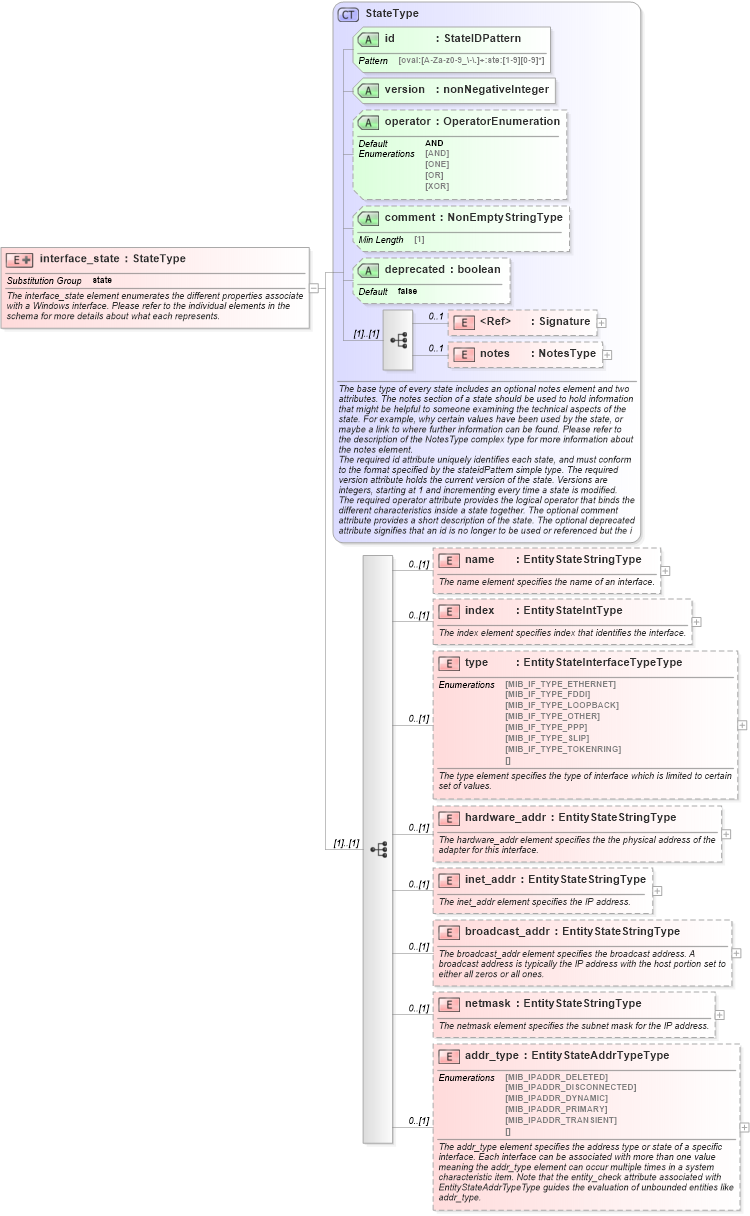

Collapse XSD Schema Diagram:
Drilldown into addr_type in schema windows-definitions-schema_xsd Drilldown into netmask in schema windows-definitions-schema_xsd Drilldown into broadcast_addr in schema windows-definitions-schema_xsd Drilldown into inet_addr in schema windows-definitions-schema_xsd Drilldown into hardware_addr in schema windows-definitions-schema_xsd Drilldown into type in schema windows-definitions-schema_xsd Drilldown into index in schema windows-definitions-schema_xsd Drilldown into name in schema windows-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into operator in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into StateType in schema oval-definitions-schema_xsdXSD Diagram of interface_state in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="interface_state" substitutionGroup="oval-def:state">
    <xsd:annotation>
        <xsd:documentation>The interface_state element enumerates the different properties associate with a Windows interface. Please refer to the individual elements in the schema for more details about what each represents.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:StateType">
                <xsd:sequence>
                    <xsd:element name="name" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The name element specifies the name of an interface.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfacestename" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:interface_state/win-def:name">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the name entity of an interface_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="index" type="oval-def:EntityStateIntType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The index element specifies index that identifies the interface.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfacesteindex" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:interface_state/win-def:index">
                                        <sch:assert test="@datatype='int'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the index entity of an interface_state should be 'int'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="type" type="win-def:EntityStateInterfaceTypeType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The type element specifies the type of interface which is limited to certain set of values.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfacestetype" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:interface_state/win-def:type">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the type entity of an interface_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="hardware_addr" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The hardware_addr element specifies the the physical address of the adapter for this interface.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfacestehardware_addr" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:interface_state/win-def:hardware_addr">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the hardware_addr entity of an interface_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="inet_addr" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The inet_addr element specifies the IP address.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfacesteinet_addr" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:interface_state/win-def:inet_addr">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the inet_addr entity of an interface_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="broadcast_addr" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The broadcast_addr element specifies the broadcast address. A broadcast address is typically the IP address with the host portion set to either all zeros or all ones.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfacestebroadcast_addr" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:interface_state/win-def:broadcast_addr">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the broadcast_addr entity of an interface_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="netmask" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The netmask element specifies the subnet mask for the IP address.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfacestenetmask" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:interface_state/win-def:netmask">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the netmask entity of an interface_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="addr_type" type="win-def:EntityStateAddrTypeType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The addr_type element specifies the address type or state of a specific interface. Each interface can be associated with more than one value meaning the addr_type element can occur multiple times in a system characteristic item. Note that the entity_check attribute associated with EntityStateAddrTypeType guides the evaluation of unbounded entities like addr_type.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="wininterfacesteaddr_type" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:interface_state/win-def:addr_type">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the addr_type entity of an interface_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
name win-def:name 0 (1)
index win-def:index 0 (1)
type win-def:type 0 (1)
hardware_addr win-def:hardware_addr 0 (1)
inet_addr win-def:inet_addr 0 (1)
broadcast_addr win-def:broadcast_addr 0 (1)
netmask win-def:netmask 0 (1)
addr_type win-def:addr_type 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
operator oval-def:operator AND Optional
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:state
