Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: interface_test
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#unix
Type: oval-def:TestType
Containing Schema: unix-definitions-schema.xsd
Abstract
Documentation:
The interface test enumerate various attributes about the interfaces on a system. It extends the standard TestType as defined in the oval-definitions-schema and one should refer to the TestType description for more information. The required object element references an interface_object and the optional state element specifies the interface information to check. The evaluation of the test is guided by the check attribute that is inherited from the TestType.

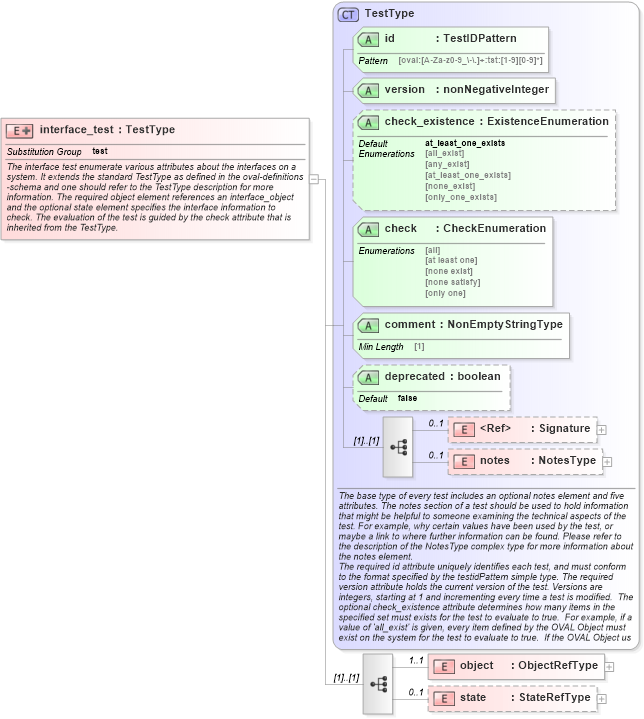

Collapse XSD Schema Diagram:
Drilldown into state in schema unix-definitions-schema_xsd Drilldown into object in schema unix-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into check in schema oval-definitions-schema_xsd Drilldown into check_existence in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into TestType in schema oval-definitions-schema_xsdXSD Diagram of interface_test in schema unix-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="interface_test" substitutionGroup="oval-def:test">
    <xsd:annotation>
        <xsd:documentation>The interface test enumerate various attributes about the interfaces on a system. It extends the standard TestType as defined in the oval-definitions-schema and one should refer to the TestType description for more information. The required object element references an interface_object and the optional state element specifies the interface information to check. The evaluation of the test is guided by the check attribute that is inherited from the TestType.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:TestType">
                <xsd:sequence>
                    <xsd:element name="object" type="oval-def:ObjectRefType" minOccurs="1" maxOccurs="1" />
                    <xsd:element name="state" type="oval-def:StateRefType" minOccurs="0" maxOccurs="1" />
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
object unix-def:object 1 1
state unix-def:state 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
check_existence oval-def:check_existence at_least_one_exists Optional
check oval-def:check Required
comment oval-def:comment Required
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:test
