Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: isainfo_test
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#solaris
Type: oval-def:TestType
Containing Schema: solaris-definitions-schema.xsd
Abstract
Documentation:
The isainfo test reveals information about the instruction set architectures. This information can be retrieved by the isainfo command. It extends the standard TestType as defined in the oval-definitions-schema and one should refer to the TestType description for more information. The required object element references an isainfo_object and the optional state element specifies the metadata to check. The evaluation of the test is guided by the check attribute that is inherited from the TestType. The isainfo_test was originally developed by Robert L. Hollis at ThreatGuard, Inc. Many thanks for their support of the OVAL project.

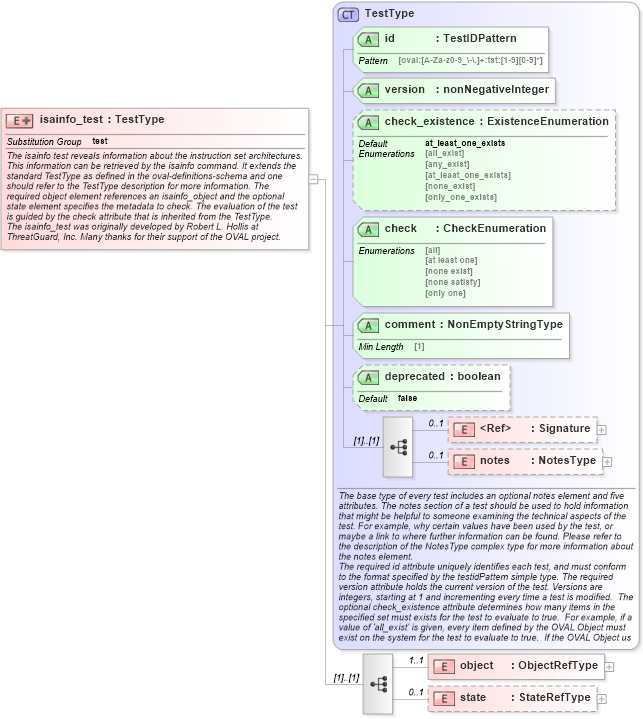

Collapse XSD Schema Diagram:
Drilldown into state in schema solaris-definitions-schema_xsd Drilldown into object in schema solaris-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into check in schema oval-definitions-schema_xsd Drilldown into check_existence in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into TestType in schema oval-definitions-schema_xsdXSD Diagram of isainfo_test in schema solaris-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="isainfo_test" substitutionGroup="oval-def:test">
    <xsd:annotation>
        <xsd:documentation>The isainfo test reveals information about the instruction set architectures. This information can be retrieved by the isainfo command. It extends the standard TestType as defined in the oval-definitions-schema and one should refer to the TestType description for more information. The required object element references an isainfo_object and the optional state element specifies the metadata to check. The evaluation of the test is guided by the check attribute that is inherited from the TestType.</xsd:documentation>
        <xsd:documentation>The isainfo_test was originally developed by Robert L. Hollis at ThreatGuard, Inc. Many thanks for their support of the OVAL project.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="isainfotst" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="sol-def:isainfo_test/sol-def:object">
                    <sch:assert test="@object_ref=/oval-def:oval_definitions/oval-def:objects/sol-def:smf_object/@id">
                        <sch:value-of select="../@id" /> - the object child element of an isainfo_test must reference an isainfo_object</sch:assert>
                </sch:rule>
                <sch:rule context="sol-def:isainfo_test/sol-def:state">
                    <sch:assert test="@state_ref=/oval-def:oval_definitions/oval-def:states/sol-def:smf_state/@id">
                        <sch:value-of select="../@id" /> - the state child element of an isainfo_test must reference an isainfo_state</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:TestType">
                <xsd:sequence>
                    <xsd:element name="object" type="oval-def:ObjectRefType" minOccurs="1" maxOccurs="1" />
                    <xsd:element name="state" type="oval-def:StateRefType" minOccurs="0" maxOccurs="1" />
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
object sol-def:object 1 1
state sol-def:state 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
check_existence oval-def:check_existence at_least_one_exists Optional
check oval-def:check Required
comment oval-def:comment Required
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:test
