Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: line_state
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#ios
Type: oval-def:StateType
Containing Schema: ios-definitions-schema.xsd
Abstract
Documentation:
The line_state element defines the different information that can be used to evaluate the result of a specific SHOW sub-command. This includes the name of ths sub-command and the corresponding config line. Please refer to the individual elements in the schema for more details about what each represents.

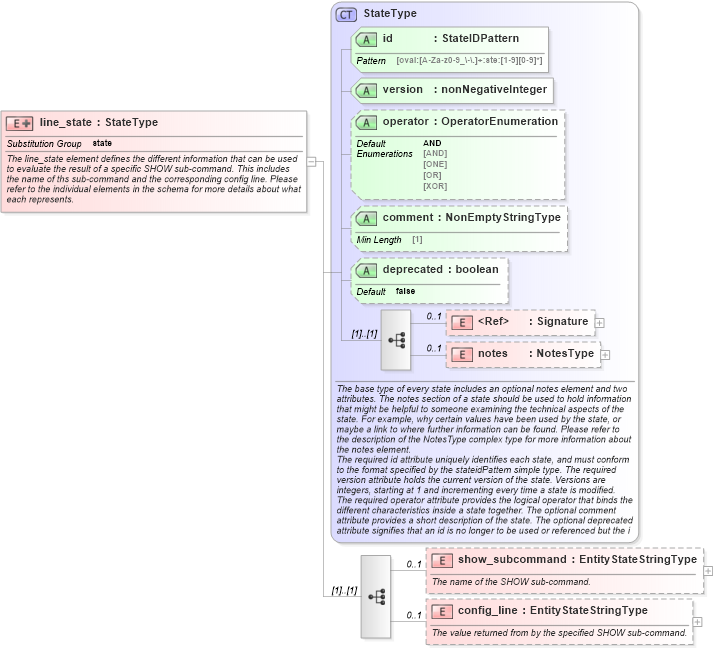

Collapse XSD Schema Diagram:
Drilldown into config_line in schema ios-definitions-schema_xsd Drilldown into show_subcommand in schema ios-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into operator in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into StateType in schema oval-definitions-schema_xsdXSD Diagram of line_state in schema ios-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="line_state" substitutionGroup="oval-def:state">
    <xsd:annotation>
        <xsd:documentation>The line_state element defines the different information that can be used to evaluate the result of a specific SHOW sub-command. This includes the name of ths sub-command and the corresponding config line. Please refer to the individual elements in the schema for more details about what each represents.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:StateType">
                <xsd:sequence>
                    <xsd:element name="show_subcommand" type="oval-def:EntityStateStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The name of the SHOW sub-command.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="linesteshow_subcommand" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="ios-def:line_state/ios-def:show_subcommand">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the show_subcommand entity of a line_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="config_line" type="oval-def:EntityStateStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The value returned from by the specified SHOW sub-command.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="linesteconfig_line" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="ios-def:line_state/ios-def:config_line">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the config_line entity of a line_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
show_subcommand ios-def:show_subcommand 0 1
config_line ios-def:config_line 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
operator oval-def:operator AND Optional
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:state
