Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: metabase_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: oval-def:ObjectType
Containing Schema: windows-definitions-schema.xsd
Abstract
Documentation:
The metabase_object element is used by a metabase test to define the specific metabase item(s) to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema. A metabase object defines the key and id of the item(s).

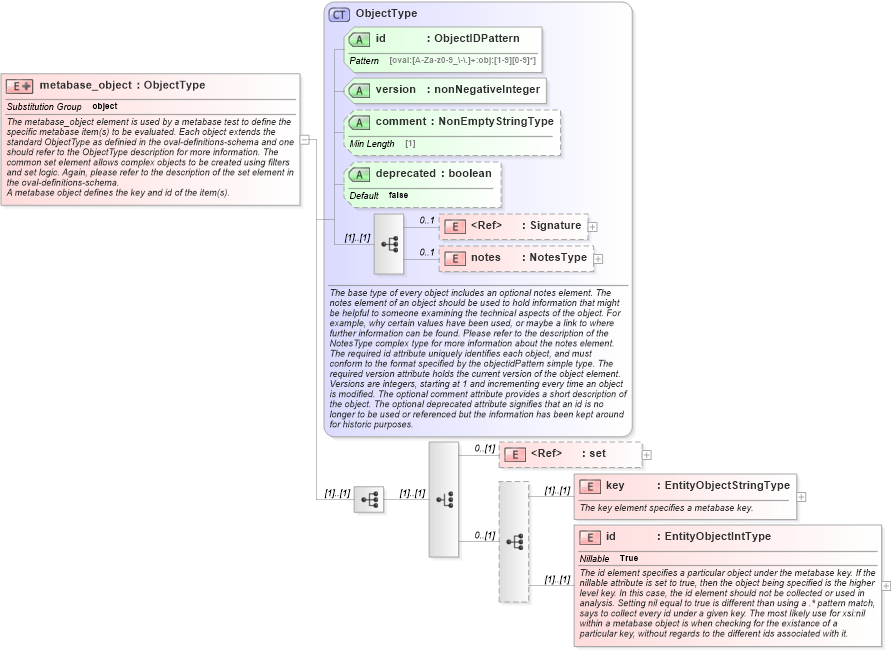

Collapse XSD Schema Diagram:
Drilldown into id in schema windows-definitions-schema_xsd Drilldown into key in schema windows-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of metabase_object in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="metabase_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The metabase_object element is used by a metabase test to define the specific metabase item(s) to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.</xsd:documentation>
        <xsd:documentation>A metabase object defines the key and id of the item(s).</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice>
                        <xsd:element ref="oval-def:set" minOccurs="0" />
                        <xsd:sequence minOccurs="0">
                            <xsd:element name="key" type="oval-def:EntityObjectStringType">
                                <xsd:annotation>
                                    <xsd:documentation>The key element specifies a metabase key.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="metabaseobjkey" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="win-def:metabase_object/win-def:key">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the key entity of a metabase_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                            <xsd:element name="id" type="oval-def:EntityObjectIntType" nillable="true">
                                <xsd:annotation>
                                    <xsd:documentation>The id element specifies a particular object under the metabase key. If the nillable attribute is set to true, then the object being specified is the higher level key. In this case, the id element should not be collected or used in analysis. Setting nil equal to true is different than using a .* pattern match, says to collect every id under a given key. The most likely use for xsi:nil within a metabase object is when checking for the existance of a particular key, without regards to the different ids associated with it.</xsd:documentation>
                                    <xsd:appinfo>
                                        <valid_datatypes>integer</valid_datatypes>
                                        <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
                                        <sch:pattern id="metabaseobjid" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="win-def:metabase_object/win-def:id">
                                                <sch:assert test="@datatype='int'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the id entity of a metabase_object should be 'int'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set 0 (1)
key win-def:key (1) (1)
id win-def:id (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
